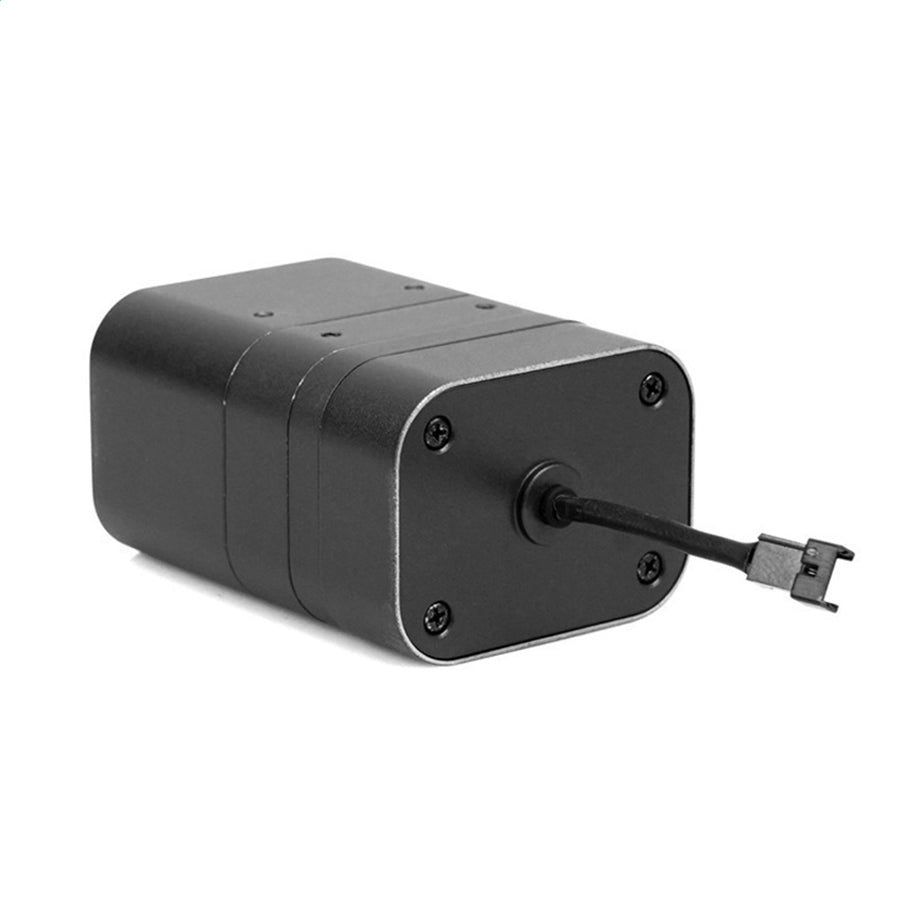

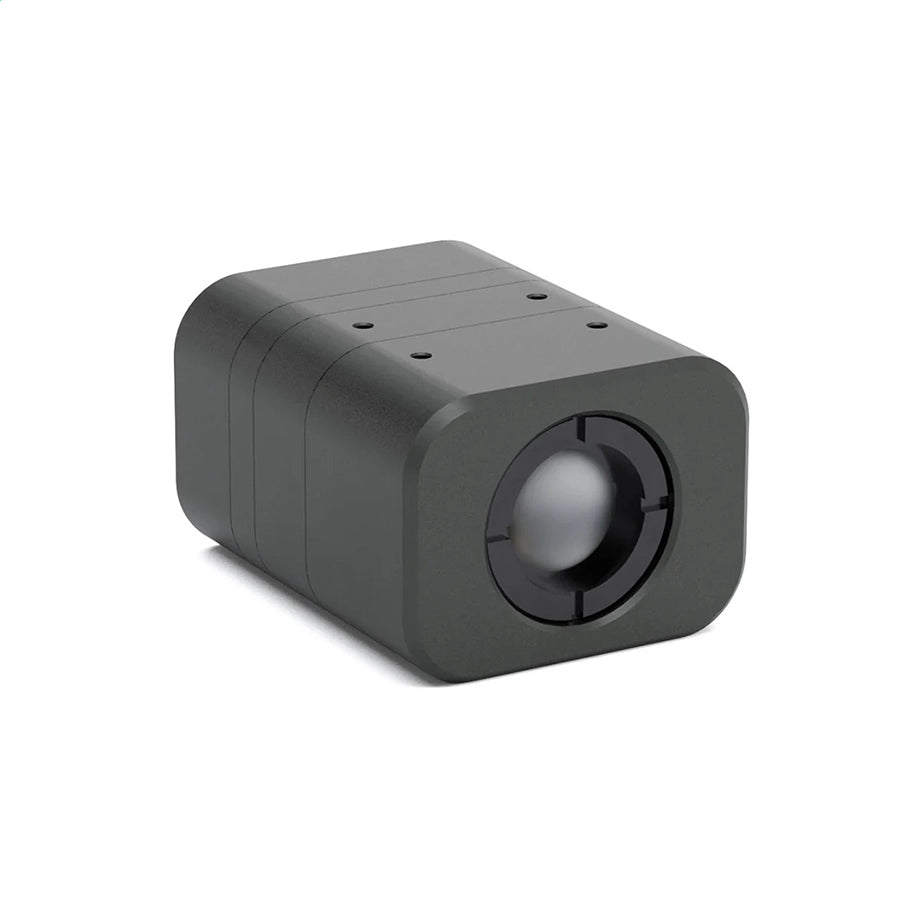

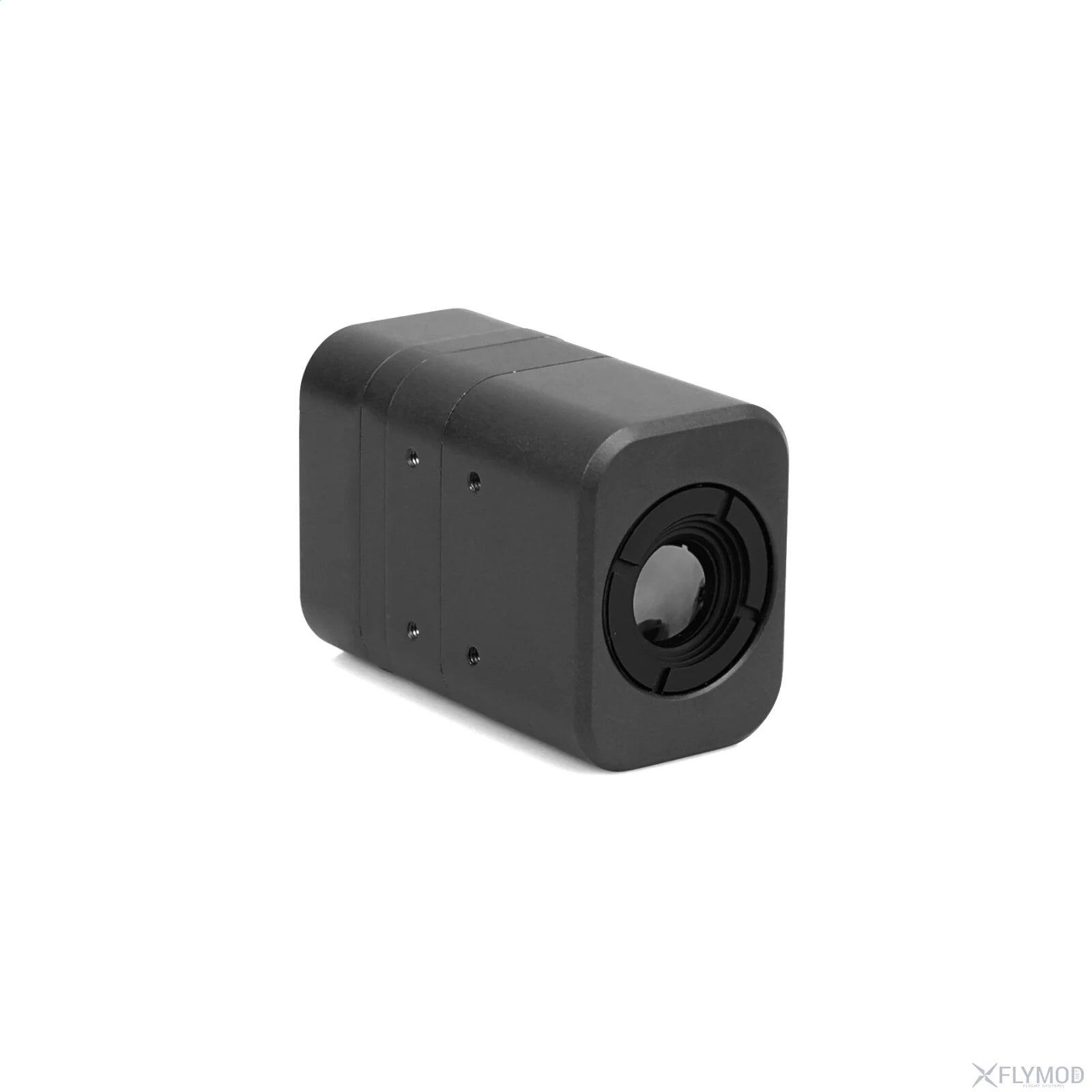

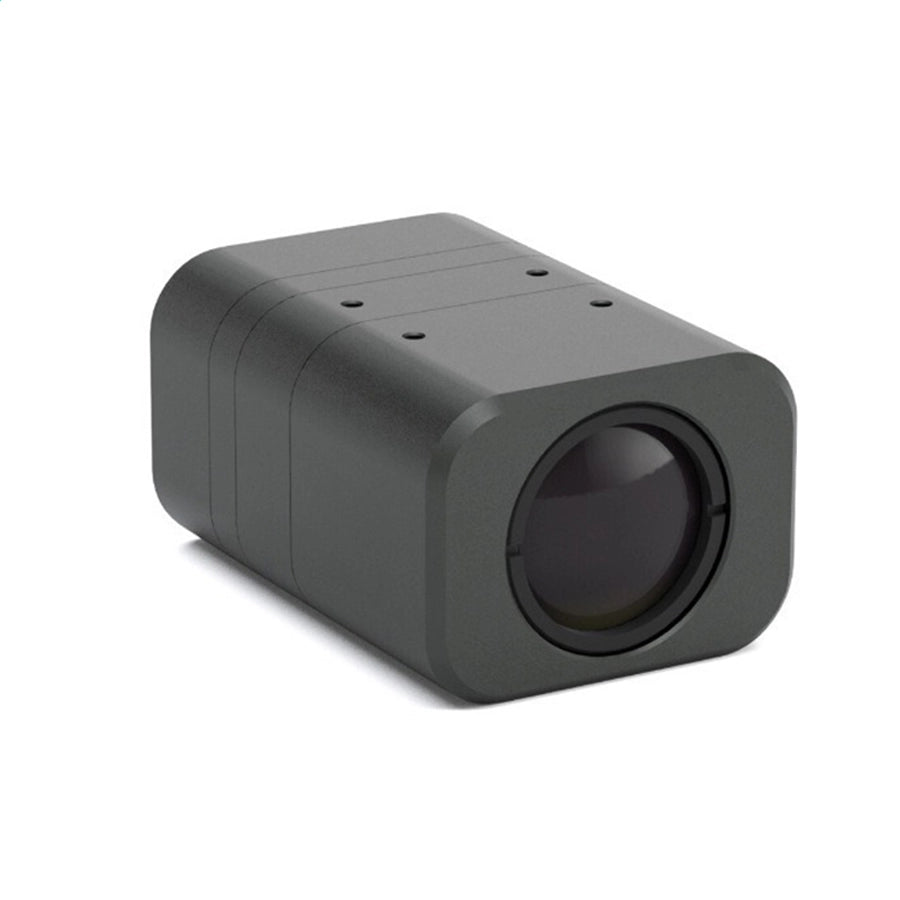

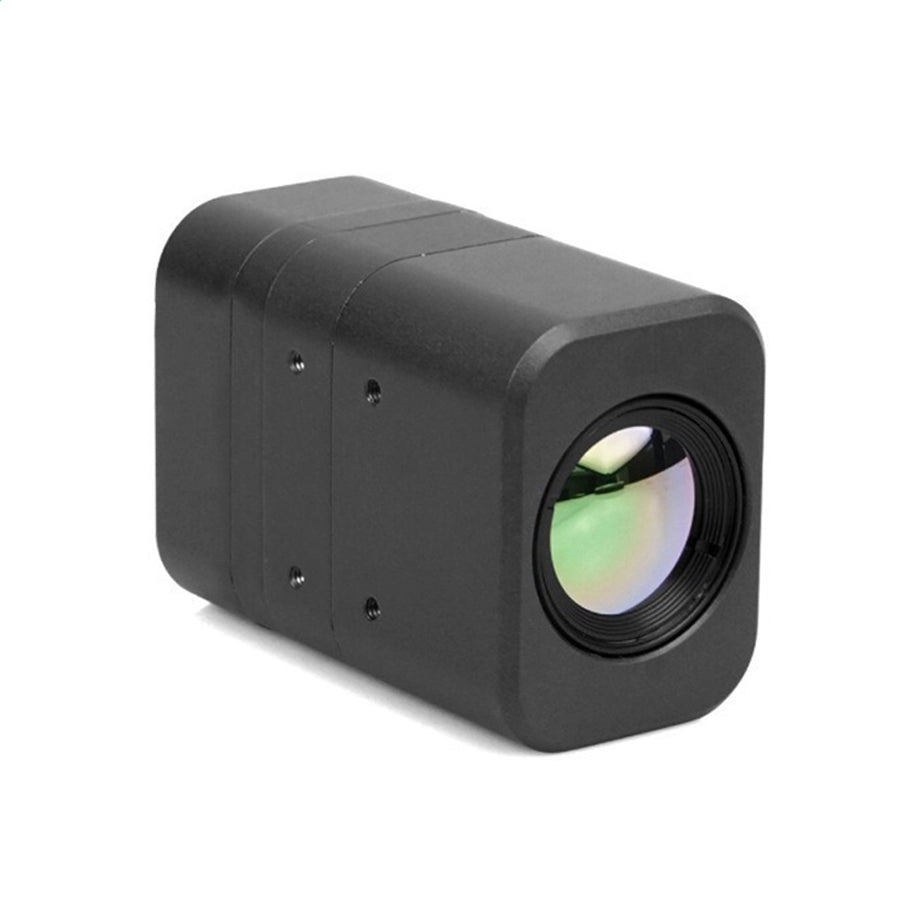

Caddx IRC-640CA / IRC-384CA Thermal Imaging Camera for FPV Drones | Analog Infrared Camera Module

Product Overview:
** The Caddx IRC Series Thermal Imaging Camera is a professional infrared imaging solution designed for FPV drones, UAV platforms, industrial inspection, search and rescue, and security applications.
** Available in both 640×512 and 384×288 thermal resolutions, the IRC series utilizes a high-sensitivity VOx uncooled infrared detector to provide clear thermal imaging in complete darkness, smoke, fog, and harsh environmental conditions.
** Featuring low-latency analog video output and lightweight construction, it is ideal for FPV pilots and drone integrators seeking reliable thermal vision capabilities.

Key Features:
High-Resolution Thermal Imaging
* Optional 640×512 or 384×288 thermal resolution
* High-performance VOx thermal sensor
* Superior thermal target recognition capability

Real-Time FPV Thermal Vision
* Low-latency analog video output
* Optimized for FPV drone operations
* Smooth 50Hz image refresh rate

All-Weather Thermal Detection
* Detects heat signatures in total darkness
* Effective through smoke, haze, fog, and low-light environments
* Enhances situational awareness during night operations

Lightweight & Compact Design
* Designed specifically for FPV drones
* Easy integration with analog video systems
* Minimal impact on flight performance

Multiple Thermal Display Modes
* White Hot
* Black Hot
* Iron Red
* Rainbow
* Multiple pseudo-color palettes

Professional UAV Applications
* Search & Rescue
* Wildlife Monitoring
* Security Surveillance
* Power Line Inspection
* Solar Panel Inspection
* Industrial Inspection
* Emergency Response

Specifications:
IRC-640CA:

* Thermal Resolution：640 × 512
* Detector Type：VOx Uncooled Thermal Sensor
* Pixel Pitch：12μm
* Frame Rate：50Hz
* Spectral Range：8–14μm
* Video Output：CVBS Analog
* Thermal Palette：Multiple Color Modes
* Input Voltage：5V–24V DC
* Operating Temperature：-20°C to +60°C

IRC-384CA
* Thermal Resolution：384 × 288
* Detector Type：VOx Uncooled Thermal Sensor
* Pixel Pitch：12μm
* Frame Rate：50Hz
* Spectral Range：8–14μm
* Video Output：CVBS Analog
* Thermal Palette：Multiple Color Modes
* Input Voltage：5V–24V DC
* Operating Temperature：-20°C to +60°C

Why Choose Caddx IRC Thermal Cameras?
** Unlike traditional FPV cameras, thermal imaging cameras detect infrared heat emitted by objects rather than visible light. This allows operators to identify people, vehicles, animals, and heat sources regardless of lighting conditions.

** The Caddx IRC Series delivers professional-grade thermal imaging performance in a compact form factor suitable for FPV drones, long-range UAVs, and industrial aerial platforms.

Applications:
* FPV Drones
* Long Range UAVs
* Search and Rescue Missions
* Security & Surveillance
* Wildlife Observation
* Industrial Inspection
* Infrastructure Monitoring
* Firefighting Support
* Emergency Response
* Agricultural Monitoring

Package Includes:
* 1 × Caddx IRC Thermal Imaging Camera

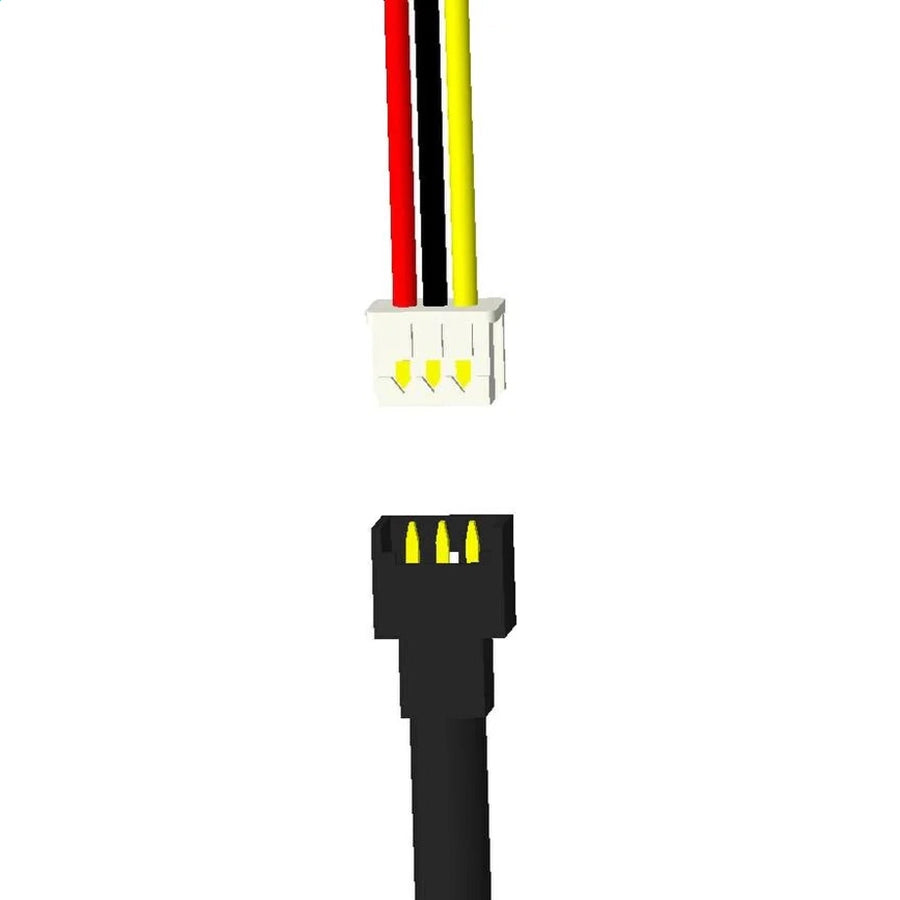

* 1 × Power & Video Cable
* 1 × User Manual
