Description
CADDXFPV ECLIPSE 009HD Thermal FPV Camera
The CADDXFPV ECLIPSE 009HD combines a 960 × 768 thermal camera with a compatible digital FPV video transmission system. Built around Pixelpump Gen3 imaging technology, a 50Hz frame rate and a 9.1mm F1.0 lens, it provides a detailed thermal view for FPV applications.
Choose the 2W Avatar GT or 4W Ascent GT Pro configuration to match your digital FPV equipment. The camera supports simultaneous digital VTX and UVC output. Brightness, contrast, palette, image orientation and digital zoom can be adjusted through supported UVC controls or the ADKEY interface.
Key Features:
- 960 × 768 thermal resolution with Pixelpump Gen3 processing
- 50Hz thermal image frame rate
- 9.1mm F1.0 lens; 48.3° horizontal × 38.6° vertical field of view
- Choice of 2W Avatar GT VTX or 4W Ascent GT Pro VTX
- Simultaneous digital VTX and UVC video output
- UVC output in MJPEG format at 640 × 512
- 1.0×–4.0× stepless digital zoom controllable via UVC
- Adjustable brightness, contrast and palette; horizontal, vertical or diagonal image mirroring
- ADKEY interface supports menu adjustment and custom OSD strings
- Compact camera module and AI box for compatible FPV installations
Specifications:
| Specification | Details |
|---|---|
| Camera model | ECLIPSE 009HD |
| Thermal technology | Pixelpump Gen3 |
| Resolution / frame rate | 960 × 768 / 50Hz |
| Lens | 9.1mm, F1.0 |
| Field of view | 48.3° (H) × 38.6° (V) |
| Camera input voltage | 4.5–20V |
| Typical camera consumption | <1.5W |
| Video output | Avatar/Ascent VTX system and UVC, simultaneous |
| UVC format / resolution | MJPEG / 640 × 512 |
| Image controls | Brightness 0–100; contrast 0–100; palettes 0–4 |
| Digital zoom | 1.0×–4.0× stepless, via UVC |
| Interfaces | UVC / ADKEY |
| Operating temperature | −20°C to 50°C |
| Camera dimensions | 22 × 22 × 28.43mm |
| AI box dimensions | 33.5 × 33.5 × 16.5mm |
VTX Specifications by Version:
| Specification | 2W Version | 4W Version |
|---|---|---|
| VTX model | Avatar GT | Ascent GT Pro |
| Frequency range | 5.725–5.850GHz | 5.650–5.924GHz |
| Channels | 8 | 3 |
| Recording / image quality | 1080p / 720p | 1080p at 60fps |
| Average latency | Approx. 22ms | Approx. 35ms |
| Antenna connectors | 2 × IPEX | 2 × MMCX |
| VTX input voltage | 11.1–25.2V | 11.1–25.2V |
| VTX dimensions | 33.5 × 33.5 × 23mm | 34 × 34 × 22.7mm |
Actual permitted transmitter output may be limited by regional regulations. Check local requirements before use.
Choose Your Version:
- 2W Avatar GT: ECLIPSE 009HD thermal camera with Avatar GT digital VTX, 8 channels, approximately 22ms average latency and IPEX antenna connectors.
- 4W Ascent GT Pro: ECLIPSE 009HD thermal camera with Ascent GT Pro digital VTX, 3 channels, approximately 35ms average latency and MMCX antenna connectors.
Confirm compatibility with your goggles, receiver, antenna and flight controller before ordering. Ensure suitable power delivery and airflow around the VTX; the unit can generate significant heat during operation.
Frequently Asked Questions:
What is the CADDXFPV ECLIPSE 009HD?
It is a thermal imaging camera system for compatible digital FPV setups, with 960 × 768 resolution, 50Hz frame rate and Pixelpump Gen3 image processing.
What is the difference between the 2W and 4W versions?
The 2W configuration includes an Avatar GT VTX; the 4W configuration includes an Ascent GT Pro VTX. They differ in frequency range, channel count, antenna connectors, module dimensions and listed average latency.
Will either version work with my FPV goggles?
Compatibility depends on the digital video system supported by your goggles or receiver. Check that your ground equipment supports the selected Avatar GT or Ascent GT Pro system before purchase.
Can the camera output video over USB?
Yes. UVC output is listed as MJPEG at 640 × 512 and can operate simultaneously with the digital VTX output.

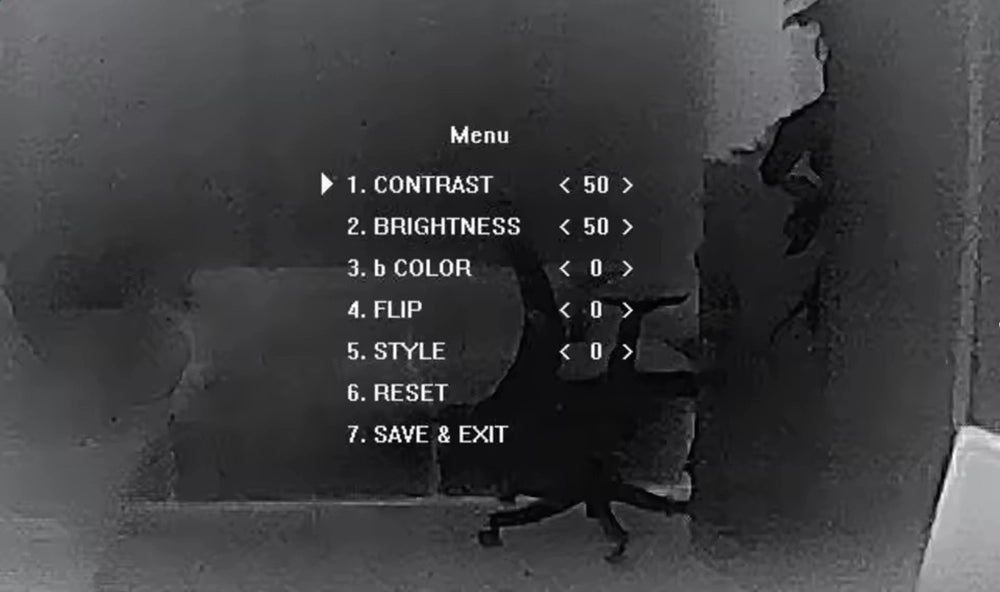

Can I adjust the thermal image?
Yes. Brightness, contrast, palette, image mirroring and 1.0×–4.0× digital zoom are supported. UVC controls and the ADKEY interface provide access to settings.
Does it support custom OSD text?
Yes. The camera’s ADKEY and GND connections support an external keypad for customizing OSD strings displayed in the video.
What power supply is required?
The camera accepts 4.5–20V. Both VTX versions list an 11.1–25.2V input. The supplied guide references VTX consumption at 12V/1.5A; provide adequate power and airflow for cooling.
Does the VTX need cooling airflow?
Yes. The VTX can generate substantial heat during operation. Allow airflow and plan for heat dissipation in your installation.
Package Contents:
Package contents may vary by selected version or production batch. Please refer to the seller’s package checklist for the exact included camera, AI box, VTX, cables, antennas and accessories.
