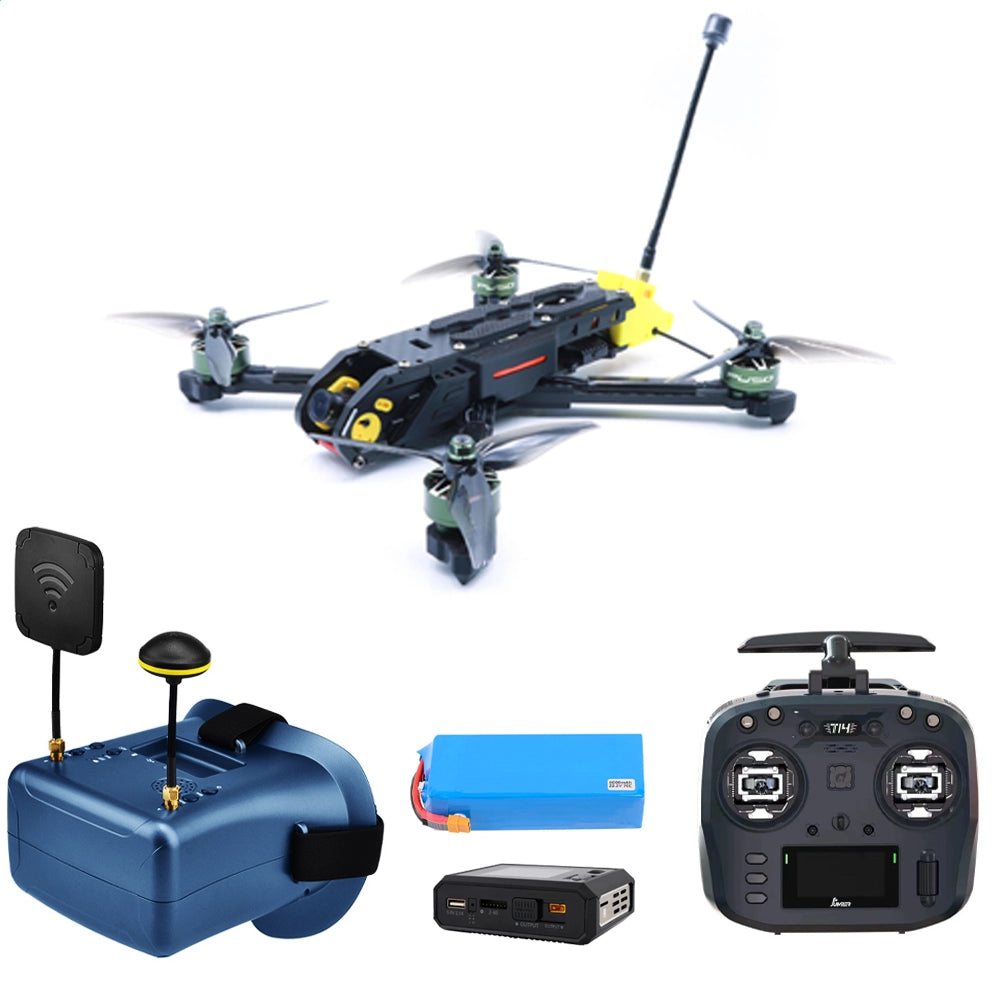

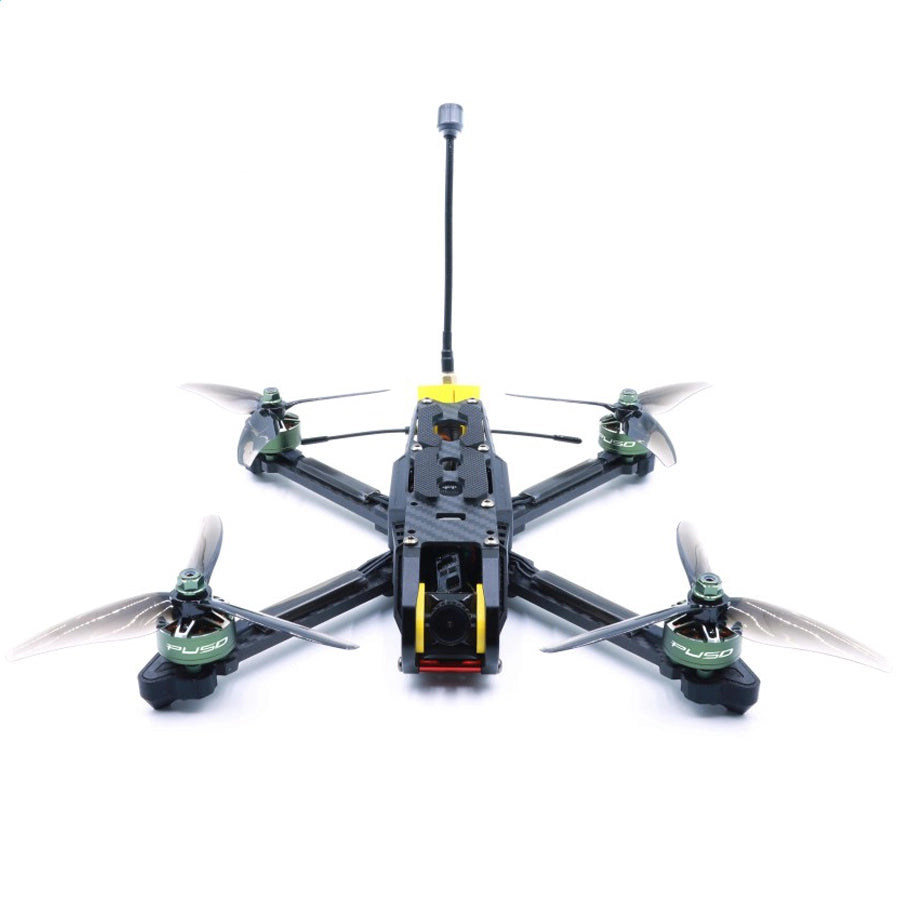

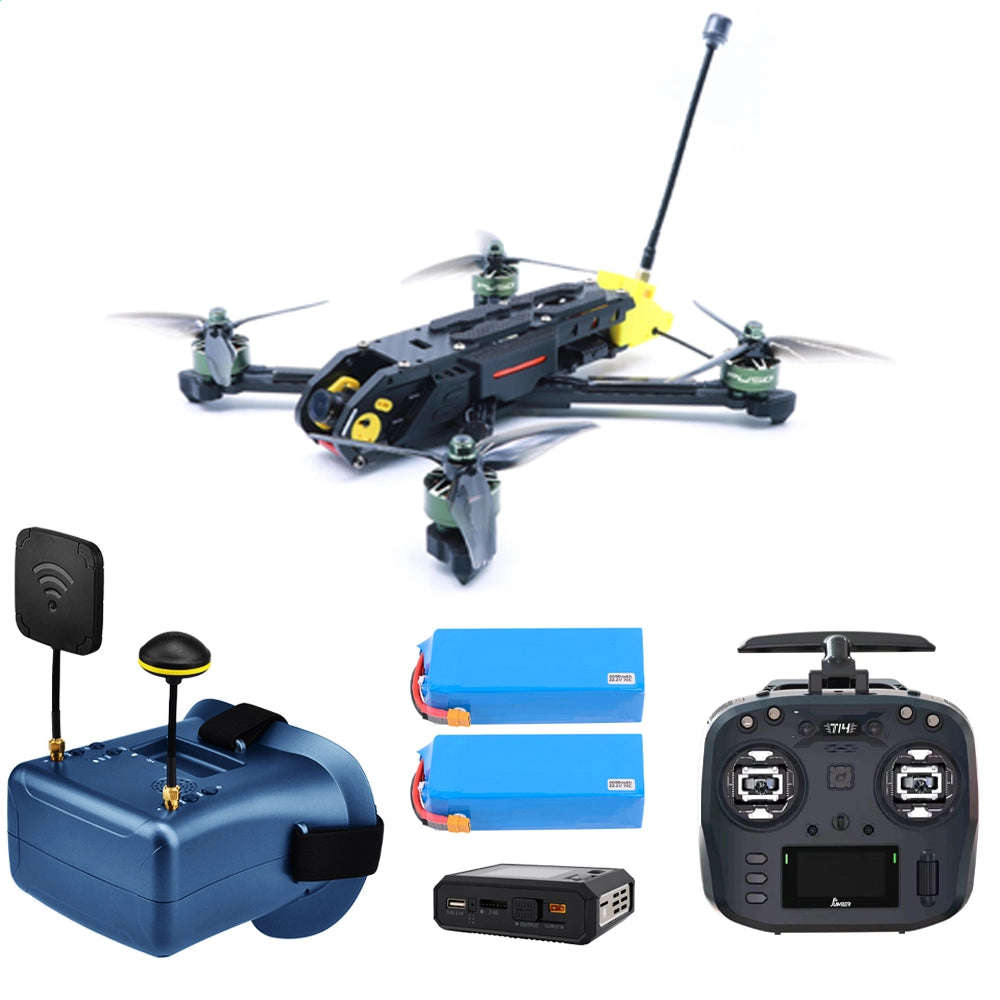

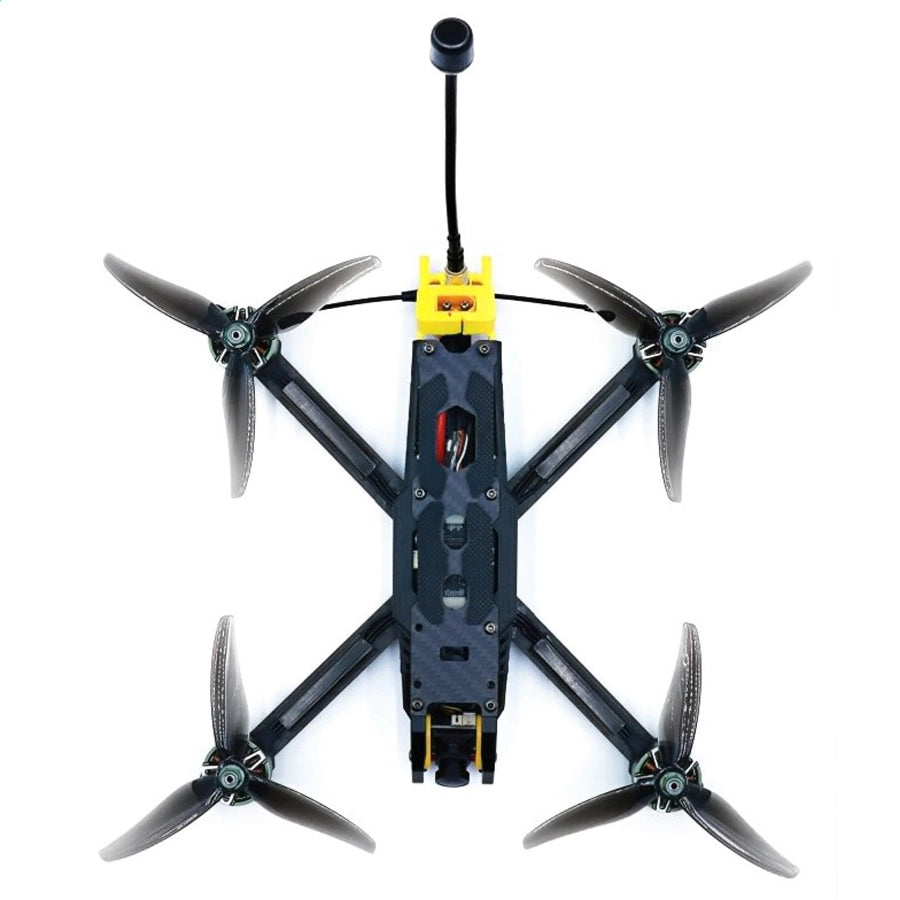

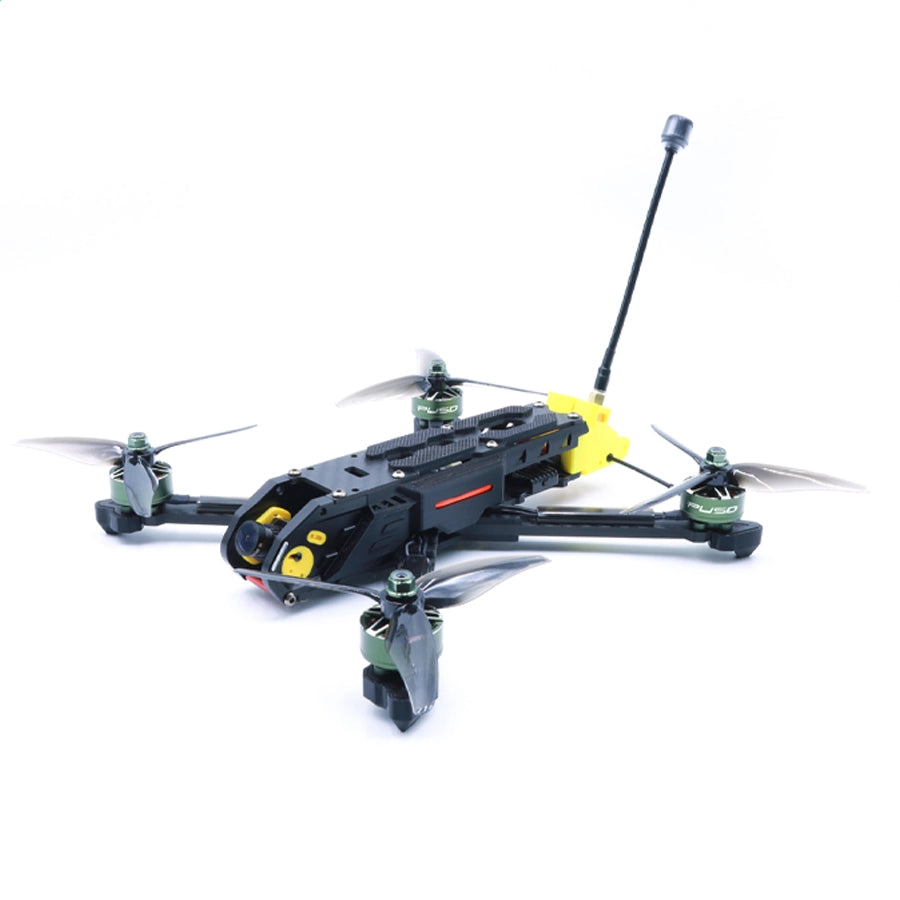

Rhion5 5-Inch FPV Drone RTF Kit with Optional Radio Transmitter and FPV Goggles
Flying Time: With Load Flying Time: 5 min; No Load: 5 - 1 2 min
Battery: 6S 3000mAh
Flying Distance: 3-5km
Max Speed: 160km/h
Max Altitude: 6000m
Specification:
Frame: 5-inch Carbon
Structure : True X
Wheelbase: 250mm
Bottom Plate Thickness: 3mm
Top Plate Thickness: 2.5mm
Carbon Plate Material: T300
Height of Electronic Device Layer: 25mm
Arm Thickness: 5mm
Camera Spacing: 14 to 20mm
Stack Mounting Hole: M3*30.5mm
VTX Mounting Hole: M220/25.5mm、M330.5mm
Propeller Installation Size: Max 5 inches
Motor Mounting Hole: 16mm16mm/19mm19mm
Top Plate Size: 15.8*3.5cm
Bottom Plate Size: 15.8*7.9cm
Motor: 2207.5 1950KV
KV Value: 1950KV
Operating Rated Voltage: 6S
No-load Current: 0.95A/10V
Phase Resistance: 54.70mΩ
Motor Weight : 34.5g
Maximum Current: 45.4A
Maximum Power: 1071.23W
Maximum Thrust: 1819.10g
Recommended Propellers: 5 1 4 6 6 , 5 1 4 3 3
FC: F405
Size: 37×37mm
Mounting Holes: 30.5×30.5mm
9V: 9V regulated power supply output interface, max current 2A
5V：5V regulated power supply output interface, maximum current 3A
4.5V：Receiver power connector (USB power supply only)
CR: Current monitoring port
M1: camera reference pin (according to the flight control firmware version)
VI: Camera input port
VO: Graphic output interface
LED: RGB light strip interface
B-：Connect to the negative terminal of the buzzer, positive terminal connects to B+.
RC: Receiver SmartPort interface
Rssi: Rssi signal input port
ESC: 60A-6S
Model: BLHeli_S 4IN160V1
Continuous Current: 60A
Burst Current: 70A (10s)
BEC: No
Current Sensor: Yes
Battery Cells: 2-6S
Weight: 21.5g
Size: 37*42.7mm
Mounting Hole Spacing: 30.5*30.5mm

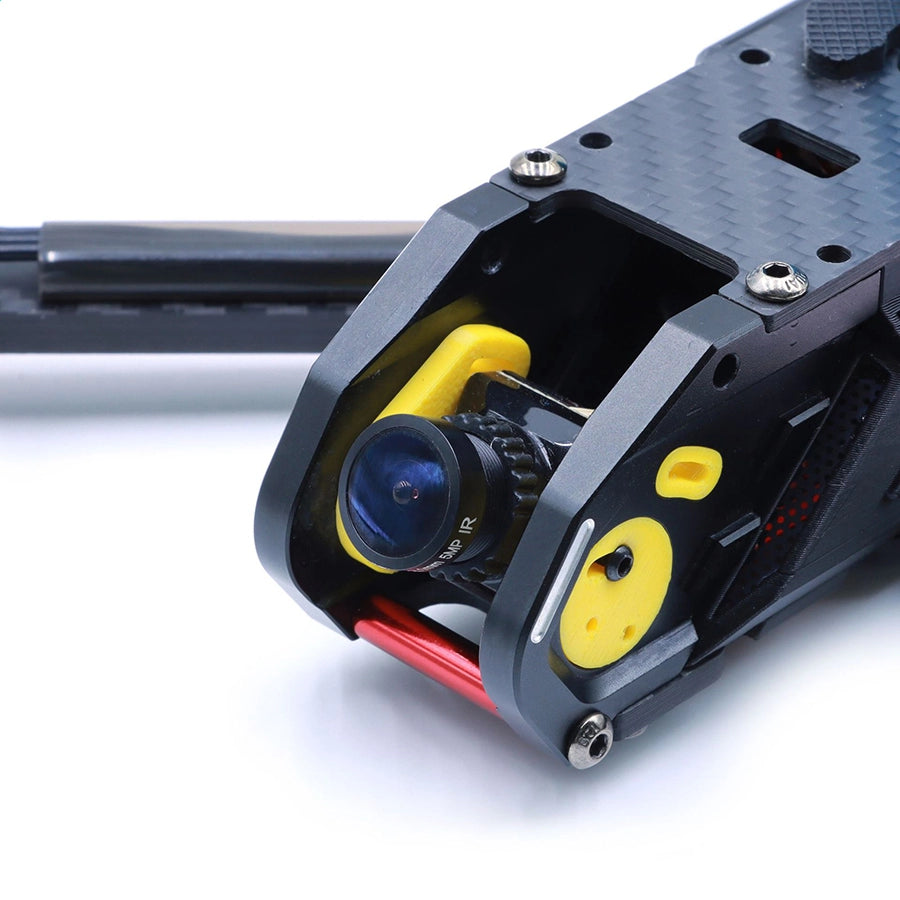

Camera: B19 Product Manual Cam 1500TVL
Model: HD 1500TVL (upgraded version, with OSD tuning board)
Image Sensor: 1 / 3′CMOS
Pixels: 1500TVL
Lens: 2.1mm
Signal System: PAL / NTSC (adjustable via OSD)
Signal-to-Noise Ratio: ＞ 60Db（AGC OFF）
Electronic Shutter Speed: PAL：1 / 50-100.000; NTSC：1 / 60-100,000
Electronic Shutter: PAL: 1/50 - 100,000; NTSC: 1/60 - 100,000
Automatic Gain Control (AGC): Low/Medium/High
Backlight Compensation (BLC): Yes
Minimum Illumination: 0.001Lux / 1.2F
WDR: D-WDR
DNR: 3DNR
Day/Night: Auto/Color/B&W
Power Supply: DC 5V-30V
VTX: 5.8G 48CH 3 W
Supported Voltage: 7-36V
BEC: 5V / 500mA
operating temperaturer: operating temperature:-10°C~+60°C
Antenna Interface: MMCX
Output Power: 25 / 1 0 0 0 / 2 0 0 0 / 3 0 00mW
Standard 48 Channels: A / B / E / F / R
Video Transmission Protocol: IRC Tramp
Mounting Holes: 30.5mm*30.5mm/φ3.15mm
Size: 37.7mm*36.1mm*11mm
Weight: 16g

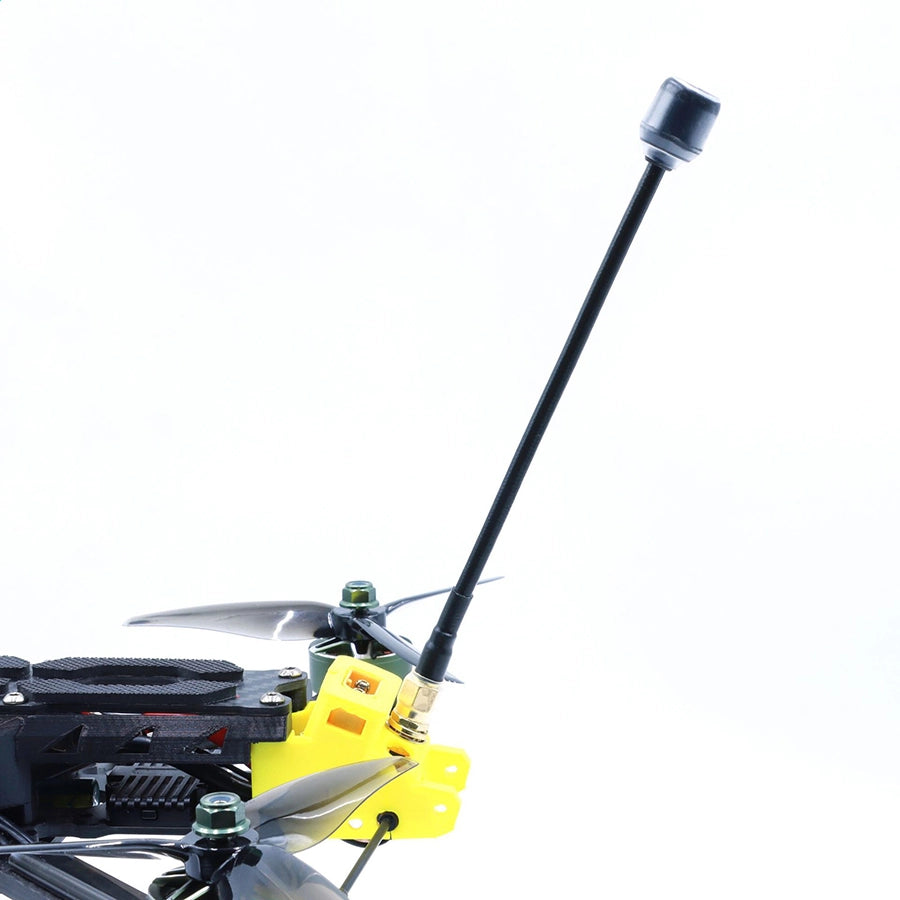

Antenna: 5.8G RHCP 150MM
** The whole is made of imported PC+ABS material which can withstand high strength impact.
** Impact resistant double-sheathed semi-rigid cable
** Root reinforcement design, 360 ° protection
RX: ELRS 915MHz
Processing Chip: ESP8285
RF Chip: SX1276IMLTRT
Power Input: 5V
Operating Current: 100mA
Operating Protocol: CSRF
Receiving Frequency Range: 915MHz or 868MHz
Size: 12mm12mm3mm
Weight: 0.6 g (excluding antenna)
Antenna Connector: IPEX1
Telemetry Output Power: <17dBm
Firmware Update Method: WIFI

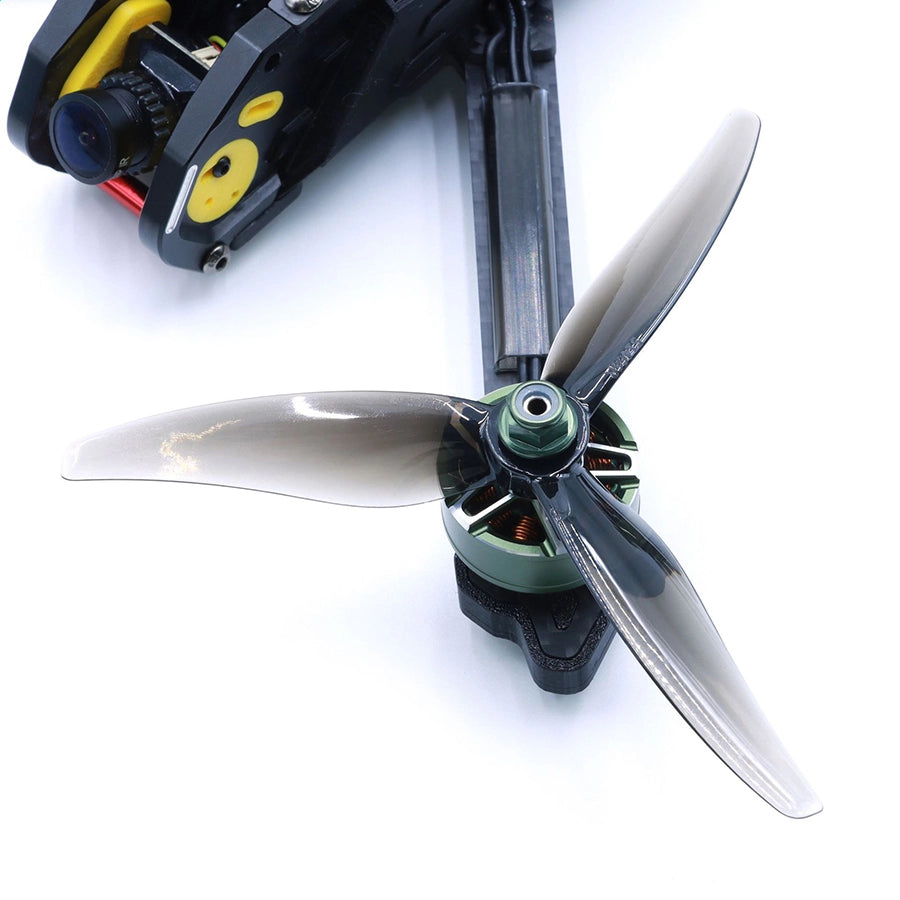

Propellers: HQ5*4*3
Type: 51466
Blades: 3
Material: PC
Pitch: 3.6in
Center Hole lnner diameter: 5mm
Weight/g: 16.8g
Inner packaging: 400g
Outer packaging (10sets): 1 kg
