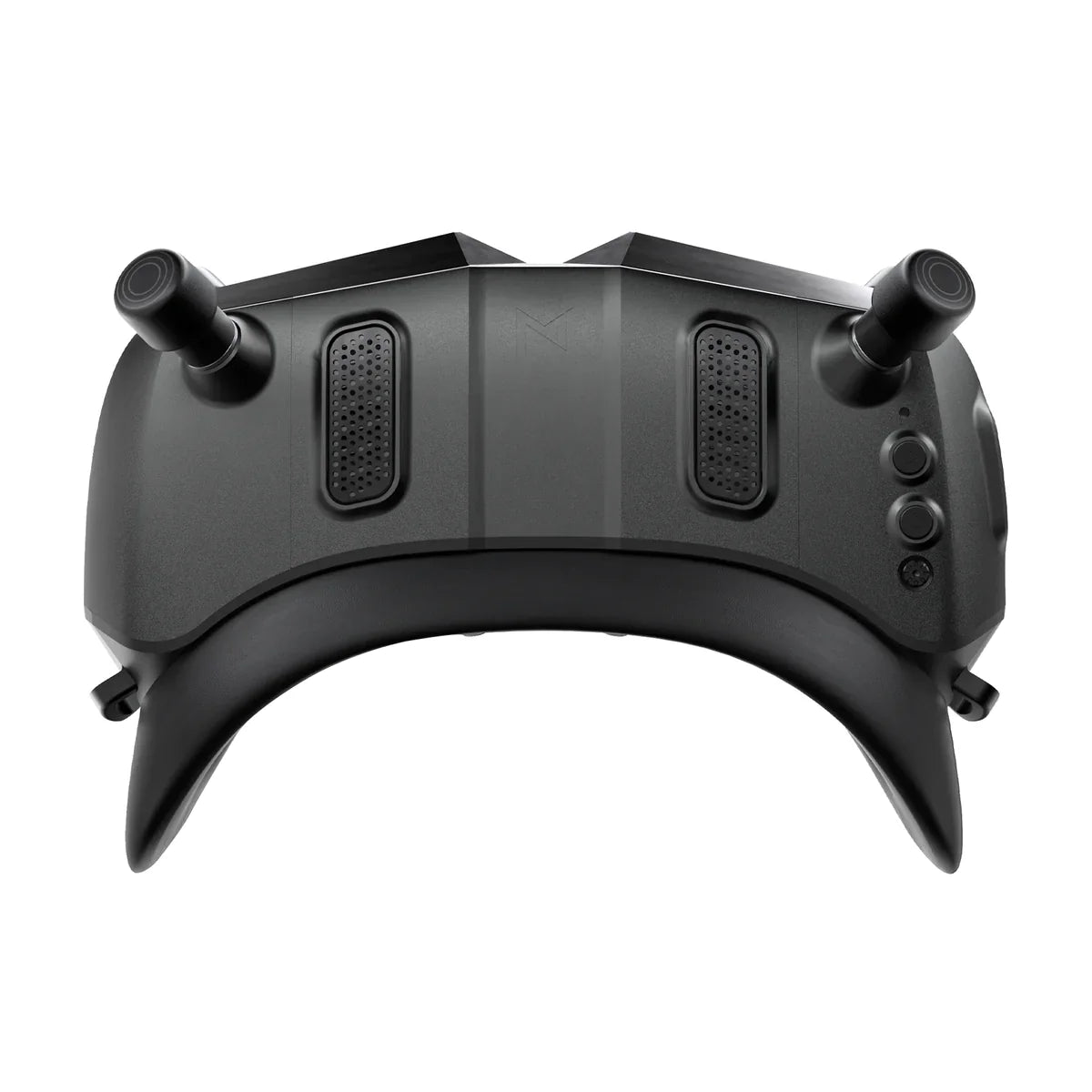

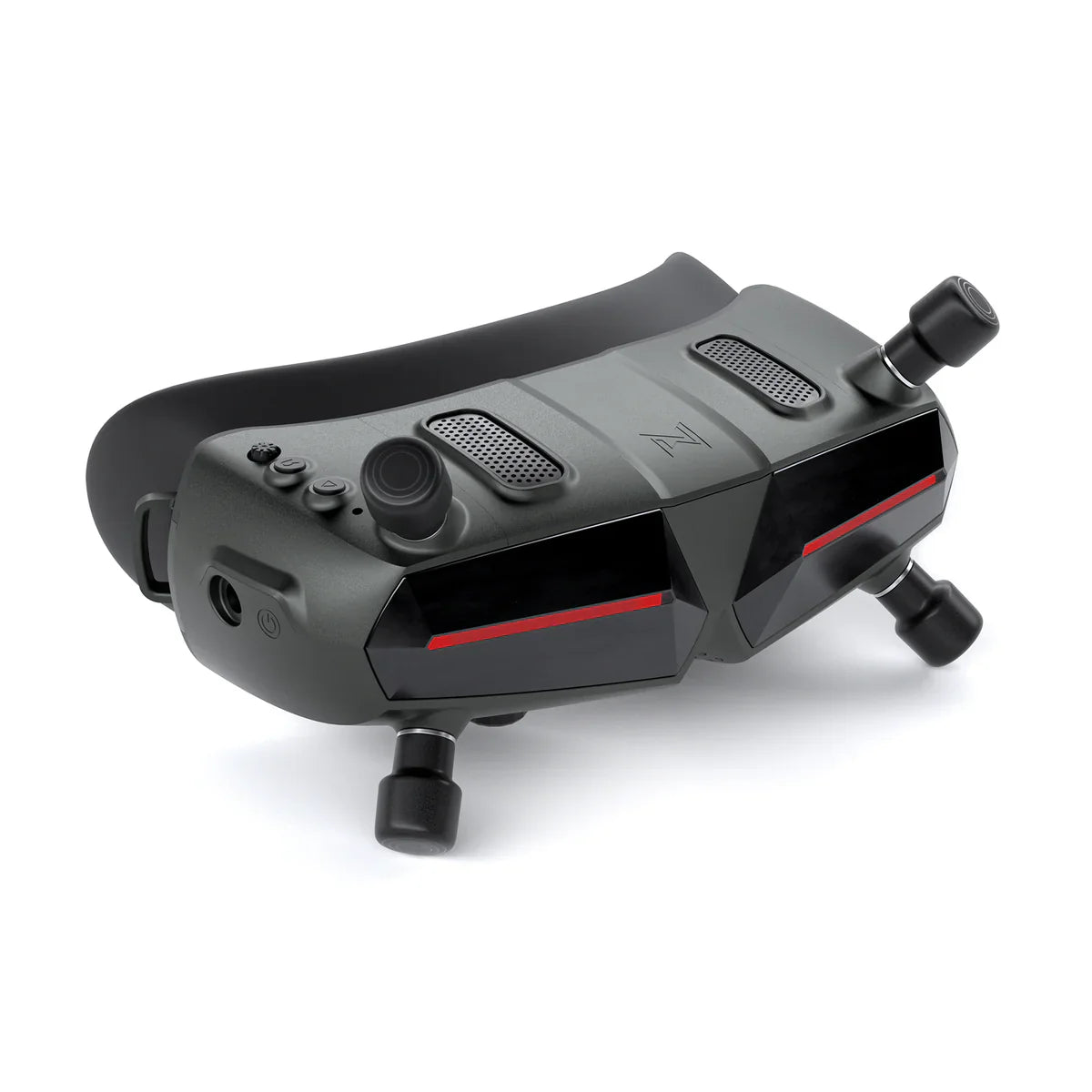

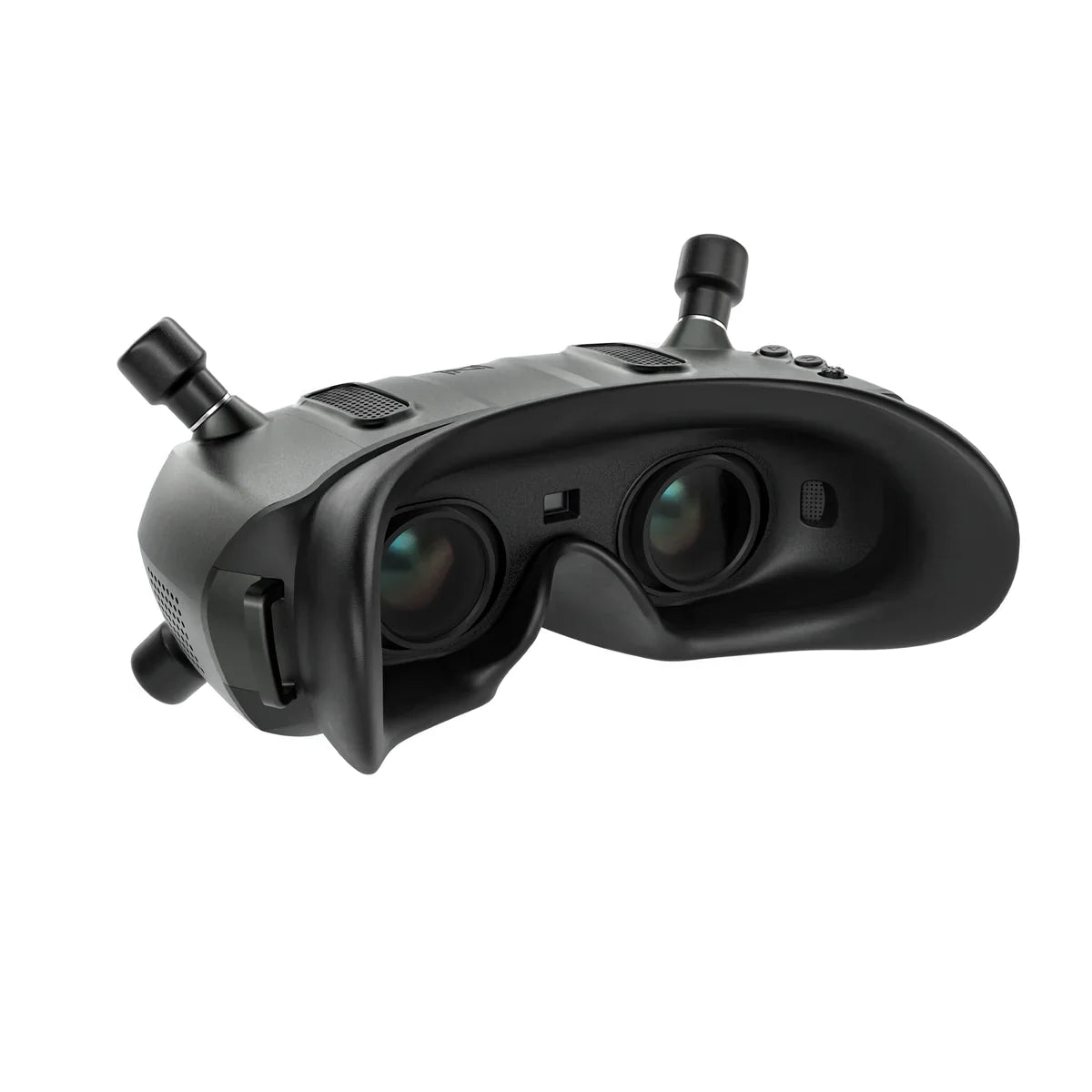

Walksnail Avatar HD Goggles X OLED 5.8Ghz Digital 1920*1080 FOV 50 Degree HDMⅠ Built-in Gyro for FPV Drone

Sale price$866.31

Color: Avatar HD Goggles X

Shipping

Free standard shipping all orders

Return

30 days Return and exchange policy


Walksnail Avatar HD Goggles X OLED 5.8Ghz Digital 1920*1080 FOV 50 Degree HDMⅠ Built-in Gyro for FPV FPV Drone

Specifications:
Name: Walksnail Avatar HD Goggles X
Communication Frequency: 5.725-5.850GHz
Transmitter Power(EIRP): FCC:<30dBm; CE:<14dBm; SRRC:<20dBm; MIC:<25dBm

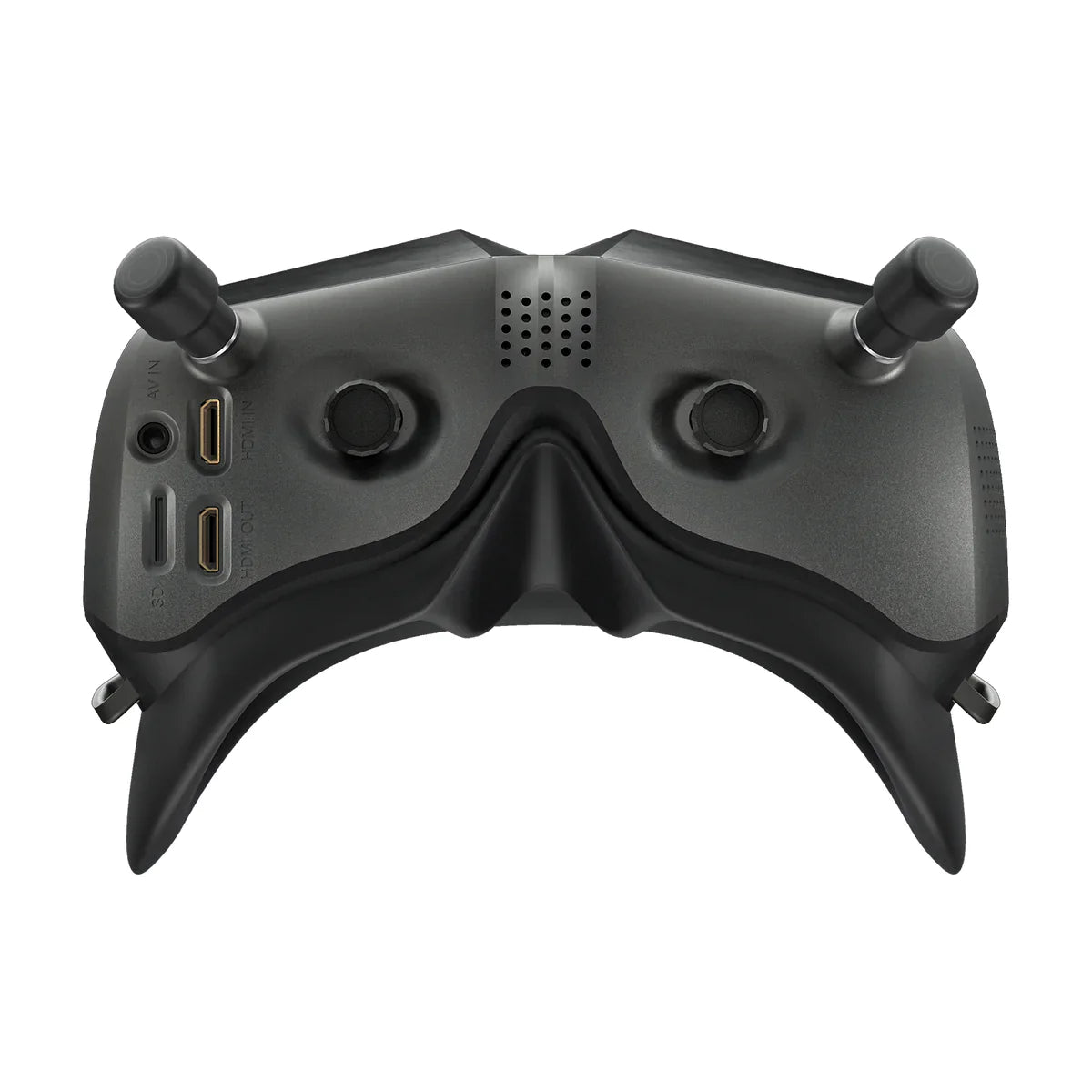

I/O Interface: HDMⅠ Out, HDMⅠ Input, 5Pin 3.5mm Audio Port, DC5.5*2.1mm Port, Micro SD Card Slot
Transmission Resolution: 1080p 100fps, 1080p 60fps, 720p 100fps, 720p 60fps
Code Rate: Max 50 Mbps
Min. Latency: Average 22ms
Average Gain: 2dBi
Polarization: LHCP
Transmission Distance:>4km
Channel: 8
Screen Resolution: 1920*1080/100Hz
Screen Material: OLED
IPD Mechanical Range: 57mm-72mm
Adjustable Focus Range:+2.0 to-6.0 Diopter
FOV: 50°
Power Input: 7-26V(2S-6S)
SD card: Support 256G
System: Avatar HD system
Wide Foam material: PU
Built-in WIFI: Yes
Built-in Gyro: Yes
Built-in Bluetooth: Yes

Features:
1. Walksnail Avatar HD Goggles X front cover of adds a light function, add a touch of style to your gear.
2. Walksnail Avatar HD Goggles X feature wide foam to provide pilots with a comfortable and secure fit regardless of different facial features, fits the face to reduce light leakage.
3. Infrared sensing technology provides easy and energy-efficient screen control.
4 Adjustable diopter knob offers personalized viewing experience.
5 Designed lightweight, mini, with wide foam for comfort and immersive FPV experience.

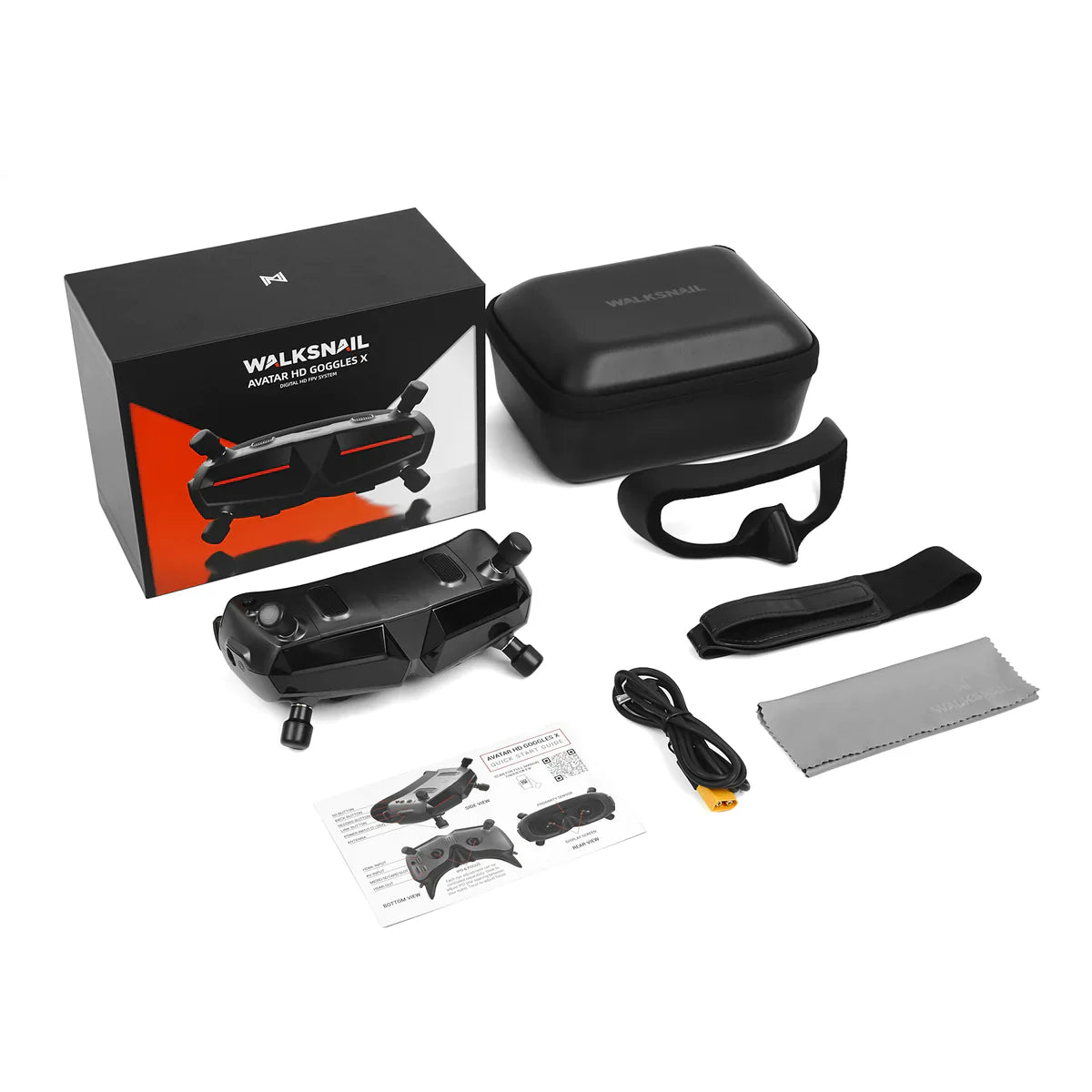

Package Included:
1x Walksnail Avatar HD Goggles X
1x Wide Foam (PU)
1x Lens cleaning cloth
1x XT60 to DC 5.5*2.1mm power cord
1x Storage Box

-As the Walksnail Avatar born, we've always been constantly collecting market's feedback and suggestions. In the new generation of research and development, we fully consider each function for customers like HDMⅠ input and CVBS input (AV IN interface).

-Meanwhile, we have also optimized wider pupil adjustment range, improved optical clarity, suitable for different people's face shapes, and we are committed at developing the APP, which can realize firmware upgrades, fc adjustment, social media sharing, without cumbersome computer operations.

-In order to reduce the user's cost of HD system, we designed the upper part of the goggles to be removable, make sure the receiving module can be replaced, so that you can maintain the latest without replacing the goggles every year.

Bullet Points for Walksnail Avatar HD Goggles X

  • The Avatar HD system utilizes industry-leading H.265 encoding technology to provide 1080p/100FPS FPV video quality with low latency, providing an immersive and responsive experience.

  • The goggles have an AV IN interface and support analog signals, support a versatile solution for FPV pilots.

  • The HDMI input expands the range of devices that can be used with the goggles, providing more flexibility and convenience. The HDMI OUT interface can be connected to other display devices to share your flight footage with pilots in real time.

  • The front cover of the goggles can be removed and replaced with new antenna, replacing the two antennas located under the goggles, which provides pilots with more options to optimize their FPV experience.
  • The cover above the goggles can be opened for easy replacement of new receiver modules, providing pilots with a cost-effective way to upgrade their goggles. Meanwhile, we are developing the next generation receiving module, which can achieve a breakthrough in flight distance, expected to reach 20 kilometers, and develop a sustainable development strategy.

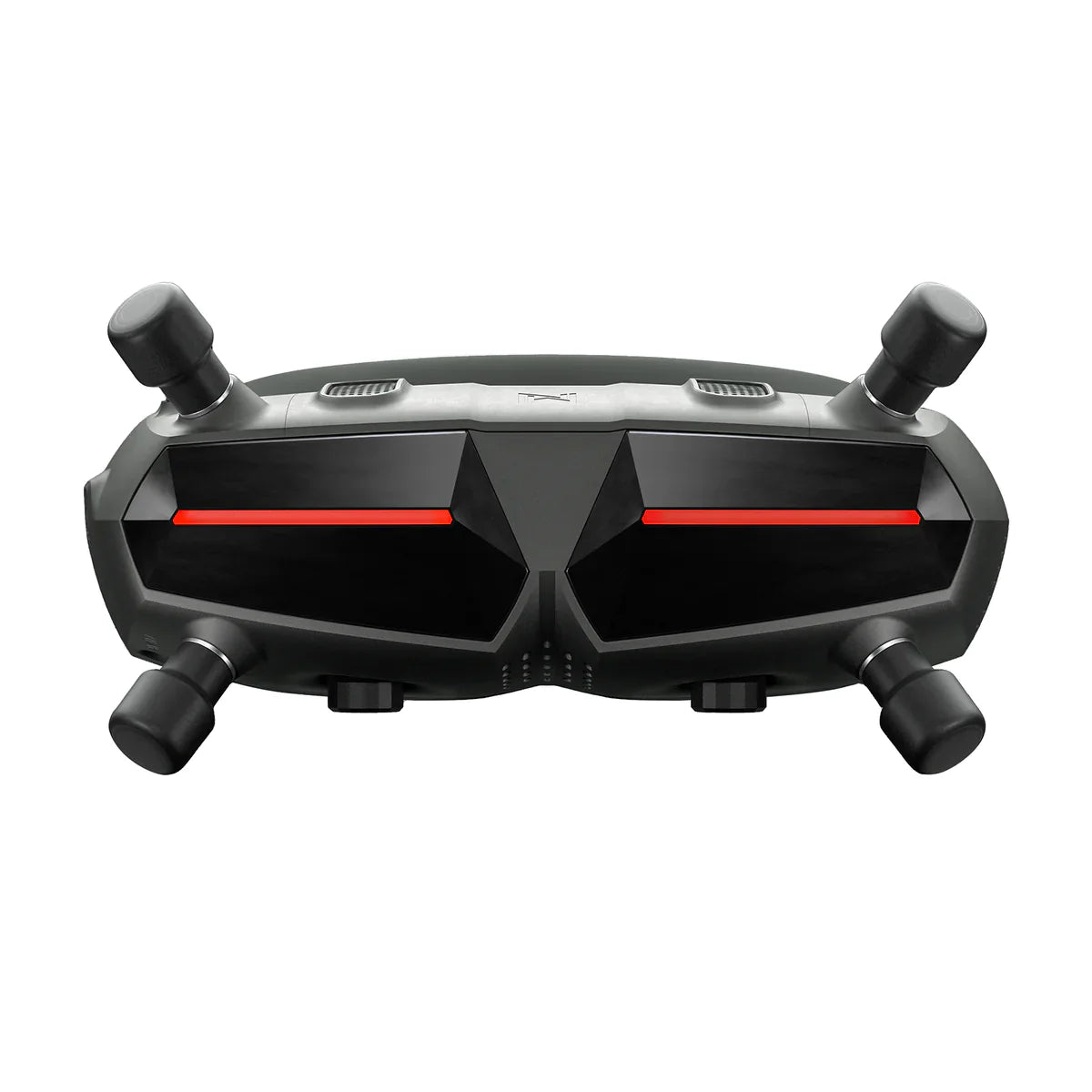

  • The front cover of the goggles adds a light function, add a touch of style to your gear.

  • 100% optical improvement, experience a clearer picture.

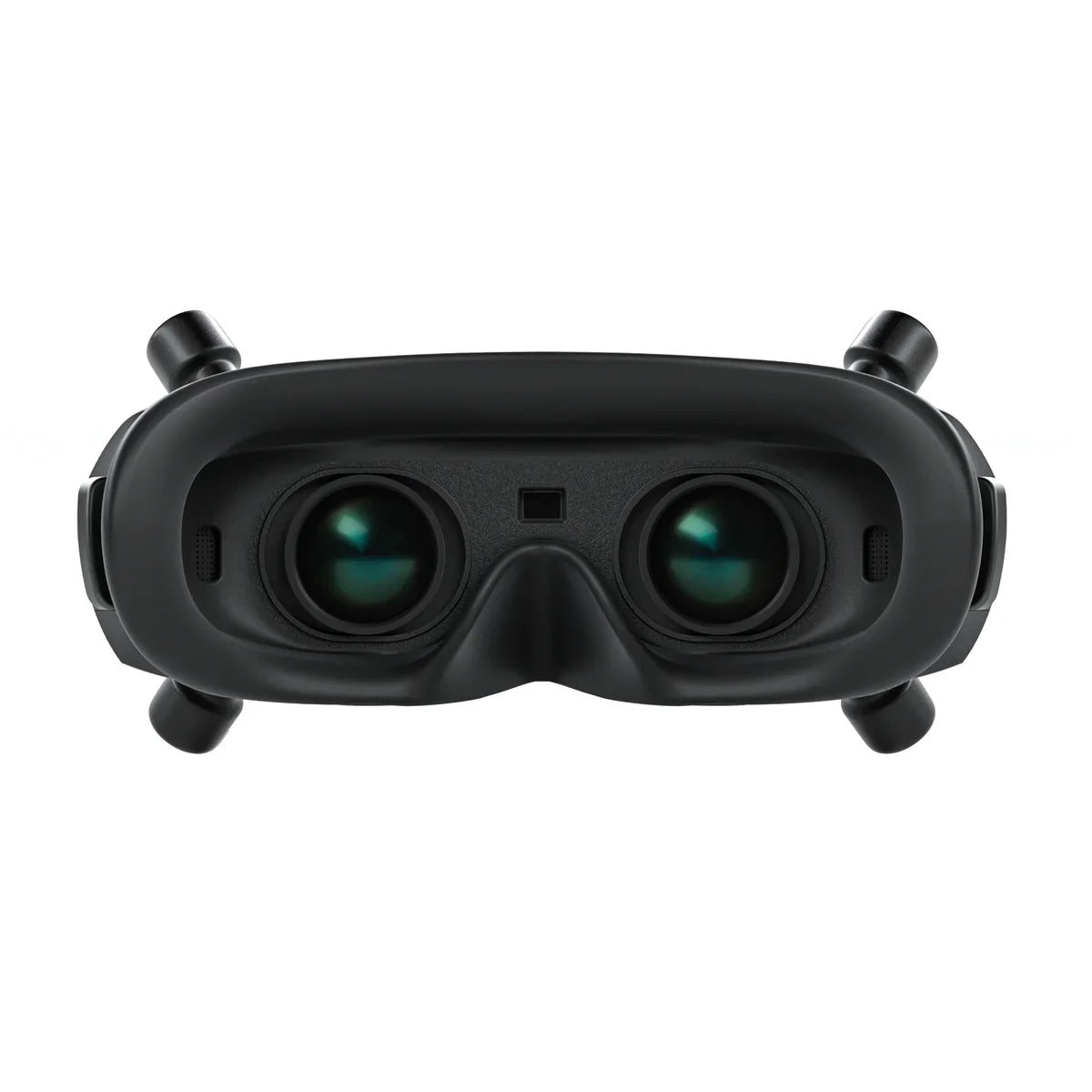

  • Adjustable from +2.0 to -6.0 via diopter knob to personalize the viewing experience and easily go glasses-free.
  • The goggles use infrared sensing technology to provide pilots with a convenient and energy-efficient way to turn the screen on and off without manually pressing any buttons. This feature helping to extend the life of the screen.

  • Lenses for astigmatism, myopia and blue light-blocking glasses can be replaced to meet different vision needs.

  • The front cover of the goggles can be DIY, allowing pilots to use their imagination to customize interesting looks for the goggles.

  • The goggles feature wide foam to provide pilots with a comfortable and secure fit regardless of different facial features, fits the face to reduce light leakage.

  • The goggles are designed to be lightweight, mini, small and carry 50°FOV, making more comfortable for pilots while giving them a more immersive FPV experience.

  • The goggles have built-in gyro hardware, which can be used to develop Fixed-wing, RC cars and other scenarios.

  • The built-in Bluetooth Wi-Fi module allows pilots to connect their goggles to an app and access a range of features, including sharing their FPV experience on social media, wireless upgrading firmware, map mode for locating the drone, and live viewing goggles screen. This feature is around the corner.

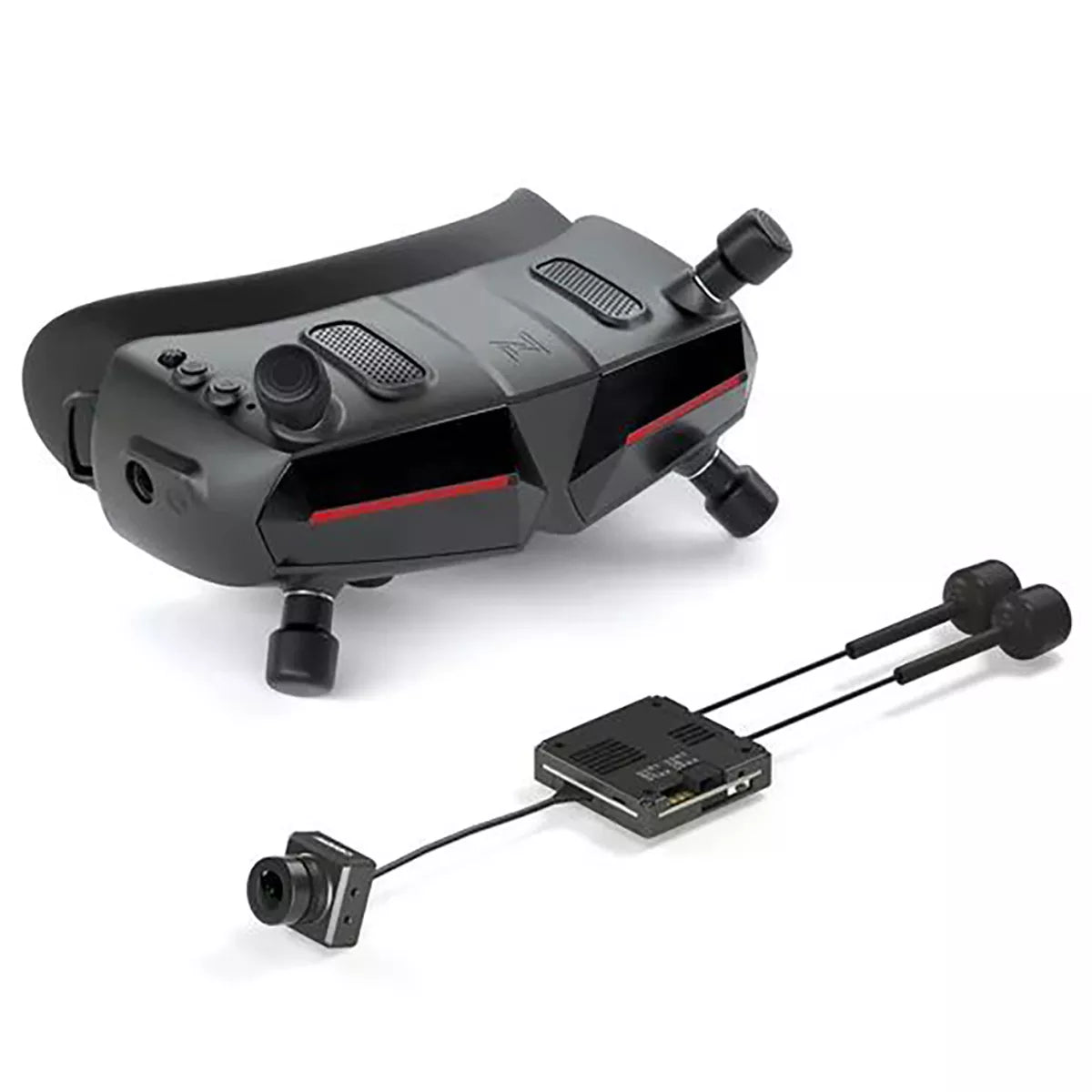

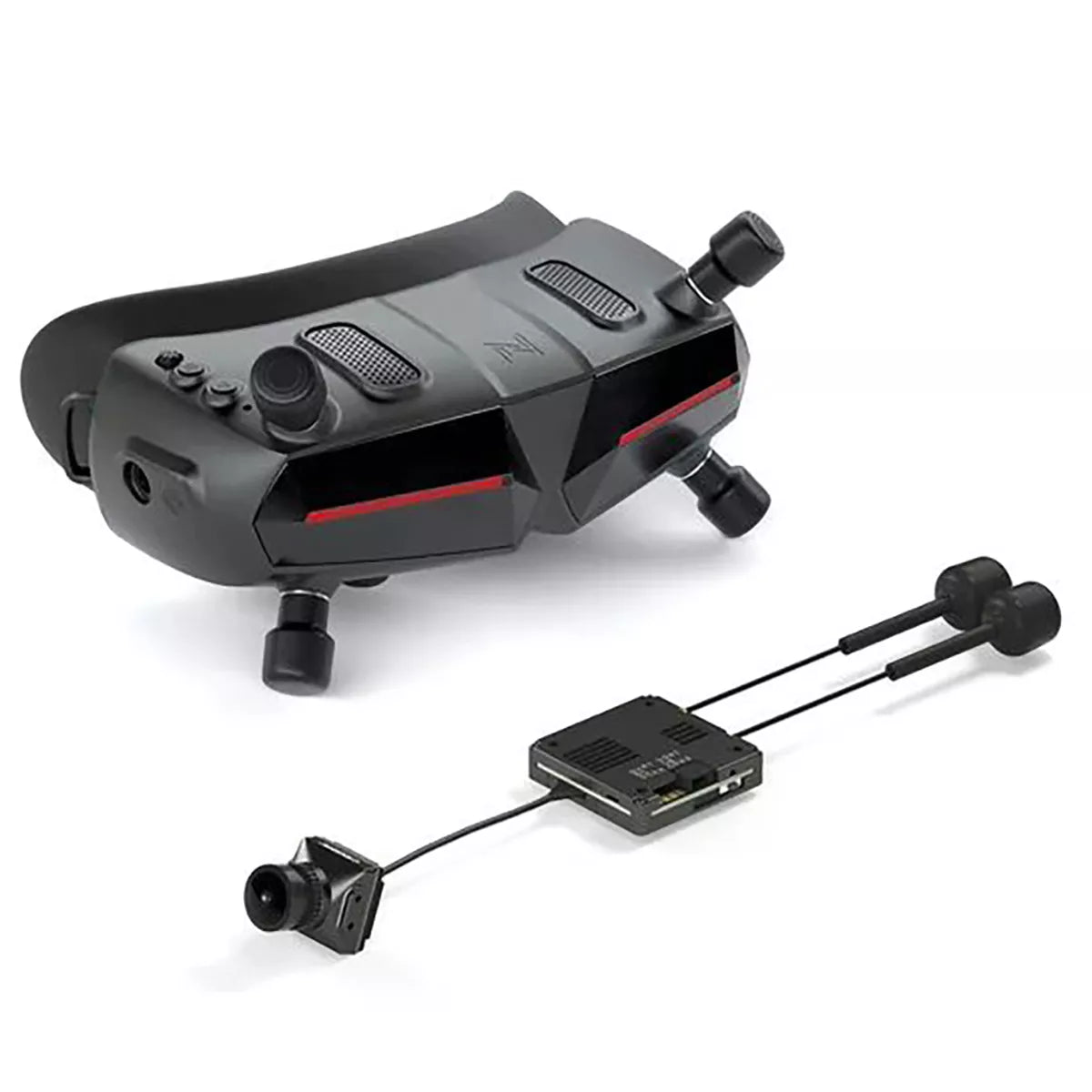

Avatar HD kit V2/Pro kit Description:

CADDX Walksnail Avatar HD Pro Kit HD Kit V2 With Gyroflow Built-in 8G/32G Storage 6V-25.2V Native 4:3 high-Definition Sensor Starvis Ⅱ Sensor Pro Camera for FPV DJI 1080P 120fps 22ms Low Latency 4KM FOV160

Features:
Avatar HD kit V2:
1080P 120fps compatibility
22ms low latency
Ranging Mode
4KM range
Light weight design
FOV160°
Built-in 8G/32G storage
Support Gyroflow
GPS anti-jamming
6V-25.2V
The only native 4:3 high-definition sensor in the FPV industry

Avatar HD Pro kit:
1080P 120fps compatibility
High frame starlight
22ms low latency
Ranging Mode
4km range
Light weight design
FOV160°
Built-in 32G storage
6V-25.2V
Sony Starvis Ⅱ Technology

Descriptions:
Avatar HD kit V2
Camera V2 with 2K pixels, 4:3 native sensor for better image quality and native 4:3 mode image ratio allows you to capture more of the surrounding scenery while flying the drone, resulting in more comprehensive and visually appealing images. Meanwhile, it's better fit for regular FPV race as well.

Avatar HD Pro kit
Support 1080P/60FPS,720P/120FPS.
Featuring a 1/1.8 inch Sony Starvis Ⅱ sensor, this camera delivers excellent night vision that's just as clear as day.

Sharing Points:
1. The Avatar HD system uses H.265 code, an industry-leading technology, to provide 1080p FPV image quality with ultra-low latency.
2. The camera ( 32G VTX KIT) supports Gyroflow, take you a smooth and stable video quality.
3. In addition to the original 25mm x 25mm mounting holes, the kit now added 20mm x 20mm holes for greater compatibility with a wider rangeof FPV drone models.
4. Updated the design of PCB board and shell, improved the quality of VTX, more durable.
5. Optimized the installation place of the antenna, so as to better protect the VTX.
6. The position of the frequency binding button has been changed to make the frequency binding operation more convenient.
7. A spare pad is added to provide two power connection modes.
8. New VTX with enhanced TVS protection and support for up to 6S. Witha wide input voltage the range of 6V to25.2V, our VTX delivers unmatched stability and resistance to GPS interference. Enjoy unparalleled performance and take your FPV adventures to new heightswith our cutting-edge technology.
9. The Avatar VTX comes with 8g/32g built-in storage it can record 1080p or 720p HD flight videos without interference. 32G built-in storage, recording video time increased by 4 times.
10. Supports both high frame rate and standard frame rate, it has anaverage latency of 22ms with the high frame rate.
11. The compact and convenient single-antenna design makes it easier to assemble your FPV drone. The quality of the antenna is upgraded, and the working performance of the whole frequency band is more stable.

Specifications:
See Picture Chart
Packing List:
USB transfer extension cable x1
4 Pin silicone cable x1
M2*4mm screws x8
M2*5mm screws x4
M2*6mm screws x4
M2*14mm screws x4
M2*5*0.5mm gasket x4
