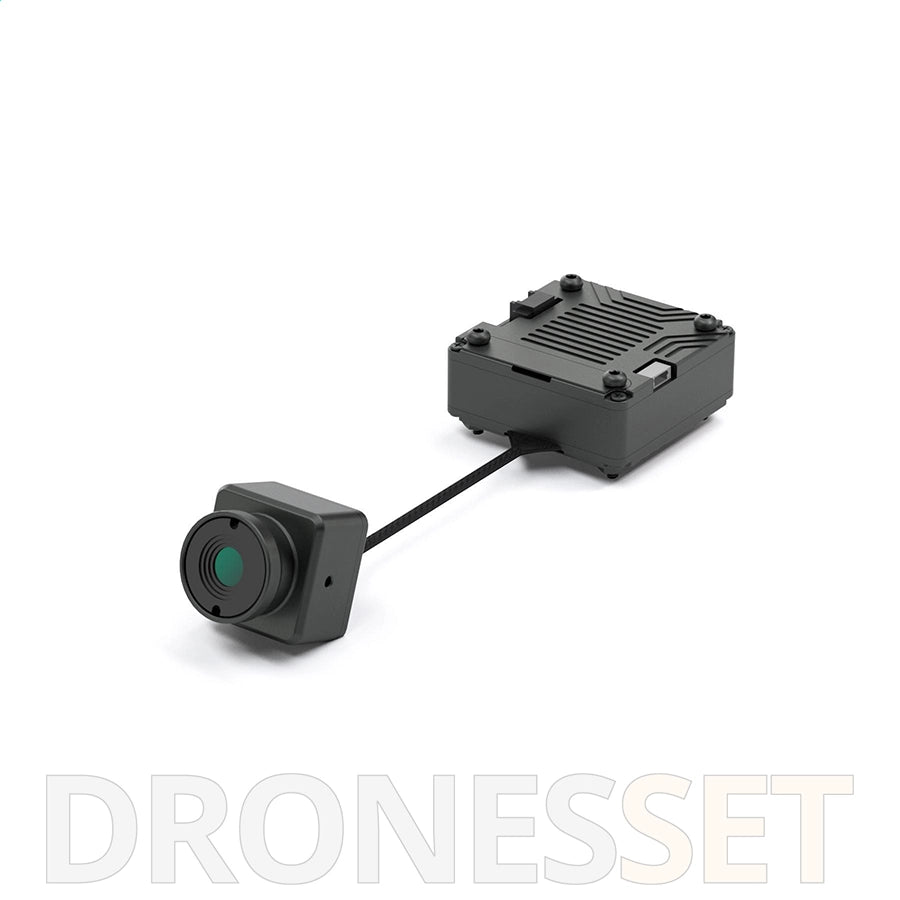

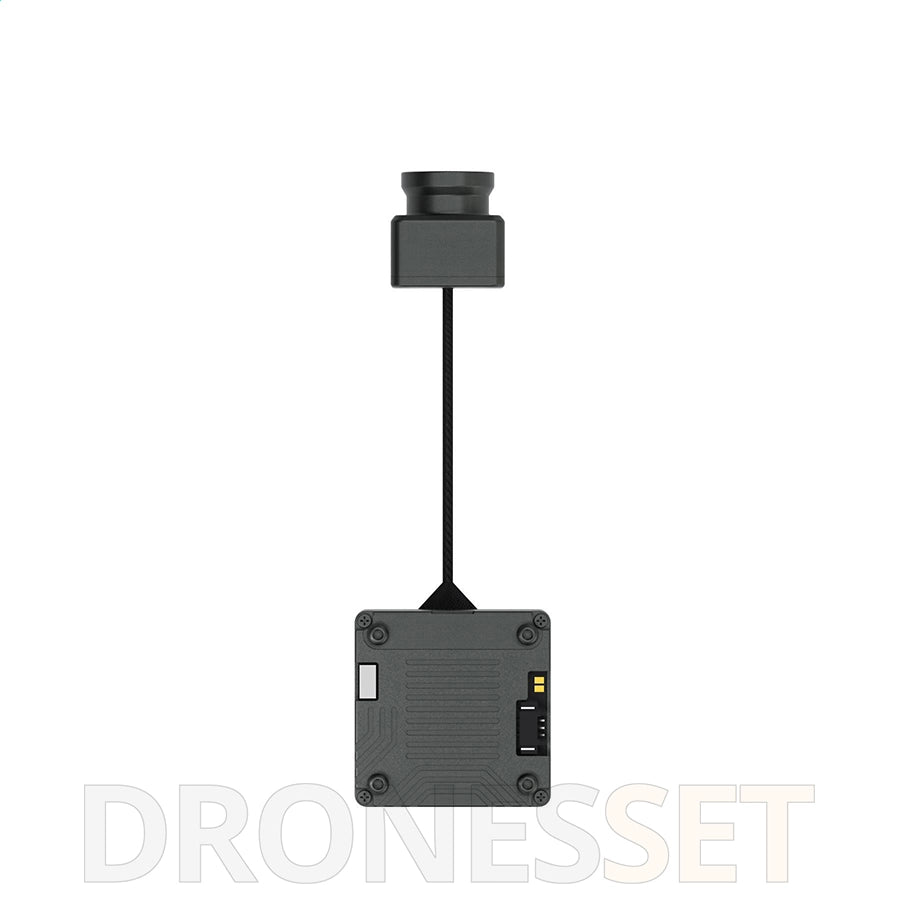

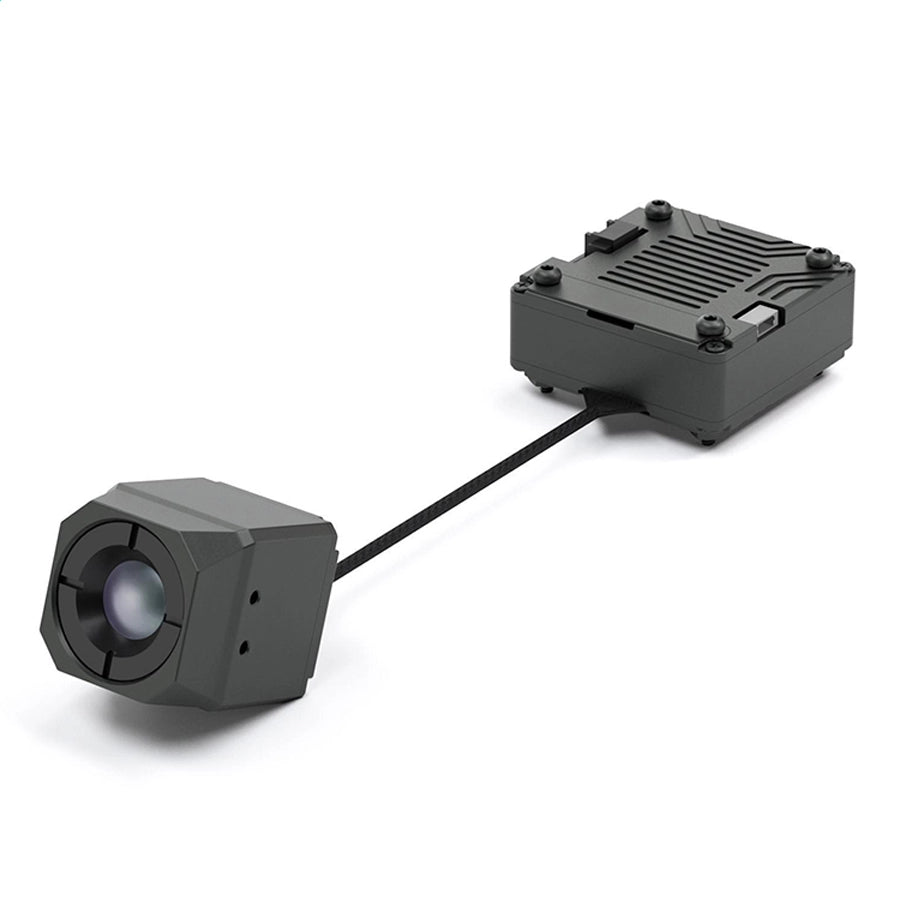

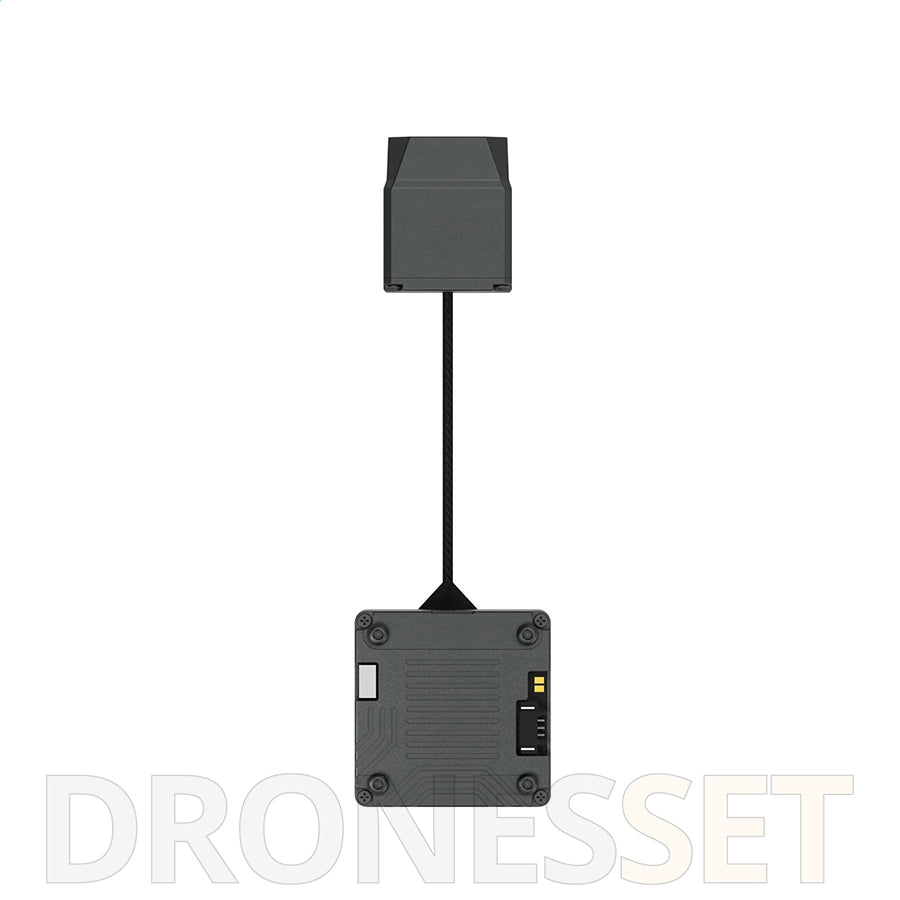

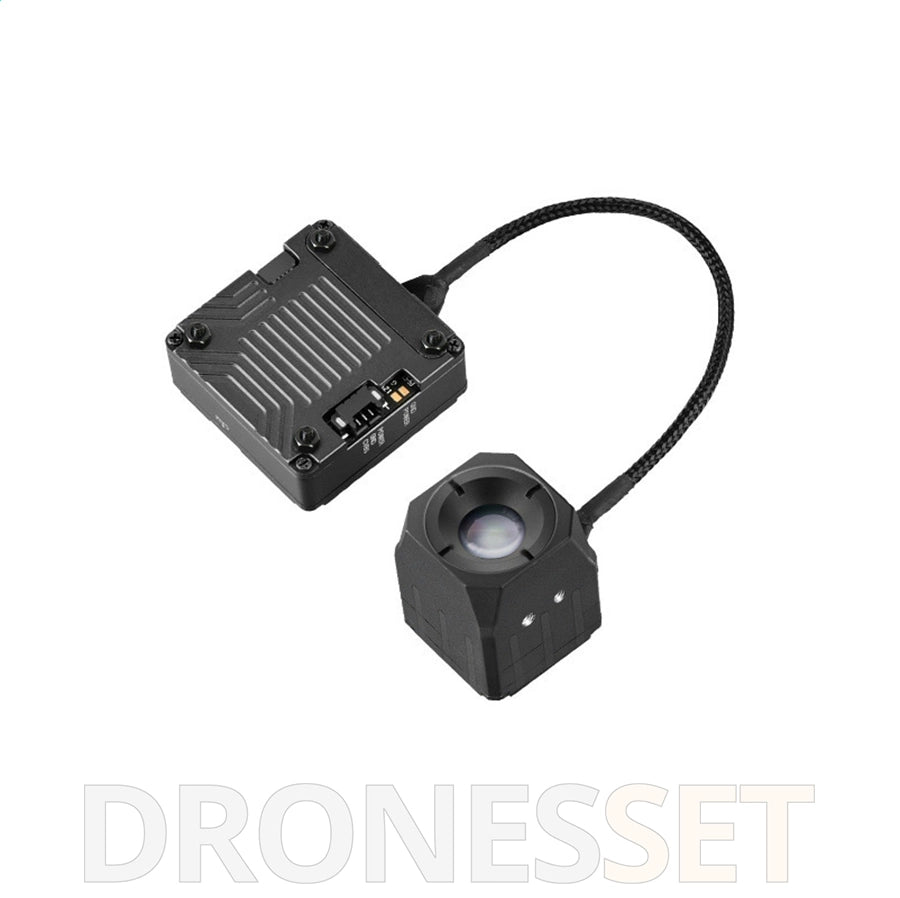

640×512 Thermal FPV Camera for Drones | Low-Latency UAV Thermal Imaging Module

Product Overview：
Enhance your FPV drone with professional thermal vision capabilities. This lightweight thermal imaging camera module features a high-sensitivity uncooled infrared detector, delivering clear thermal images in complete darkness, smoke, fog, and challenging environments.

Designed specifically for FPV drones, UAV platforms, robotics, and industrial inspection systems, the camera outputs low-latency analog video for real-time thermal monitoring and navigation.

Whether you're conducting search and rescue missions, wildlife observation, infrastructure inspections, or night operations, this thermal camera provides reliable thermal awareness when visible-light cameras can no longer perform.

Key Features：
✓ High-Resolution Thermal Imaging
* Resolution：640 × 512
* High-sensitivity uncooled thermal detector
* Enhanced thermal target recognition

✓ Low-Latency FPV Performance
* Real-time thermal video transmission
* Compatible with analog FPV systems
* Optimized for drone operations

✓ Day & Night Thermal Visibility
* Operates in total darkness
* Penetrates smoke, fog, dust, and low-light environments
* Detects heat signatures beyond visible-light limitations

✓ Compact & Lightweight Design
* Easy integration with FPV drones
* Suitable for long-range UAV platforms
* Minimal impact on payload capacity

✓ Multiple Applications
* Search & Rescue
* Security & Surveillance
* Industrial Inspection
* Wildlife Monitoring
* Agricultural Monitoring
* Night Flight Operations

Specifications：
* Thermal Resolution：640 × 512
* Detector Type：Uncooled VOx Thermal Sensor
* Video Output：CVBS Analog
* Frame Rate：25–50 FPS
* Lens Type：9.1mm Infrared Lens
* Thermal Spectrum：8–14μm LWIR
* Input Voltage：9V–24V DC
* Power Consumption：< 1.5W
* Operating Temperature：-20°C to +60°C
* Application：FPV Drones / UAV Platforms

Advantages of Thermal Imaging：
Unlike traditional FPV cameras, thermal imaging detects heat signatures instead of visible light. This enables drone operators to locate people, vehicles, animals, and heat sources even in complete darkness or visually obstructed environments.

Thermal cameras are increasingly used in:
* Search and Rescue Operations
* Emergency Response
* Security Patrol Missions
* Infrastructure Inspection
* Power Line Inspection
* Solar Panel Inspection
* Wildlife Tracking
* Agricultural Monitoring

Package Includes
* 1 × Thermal Imaging Camera Module
* 1 × Connection Cable Set
