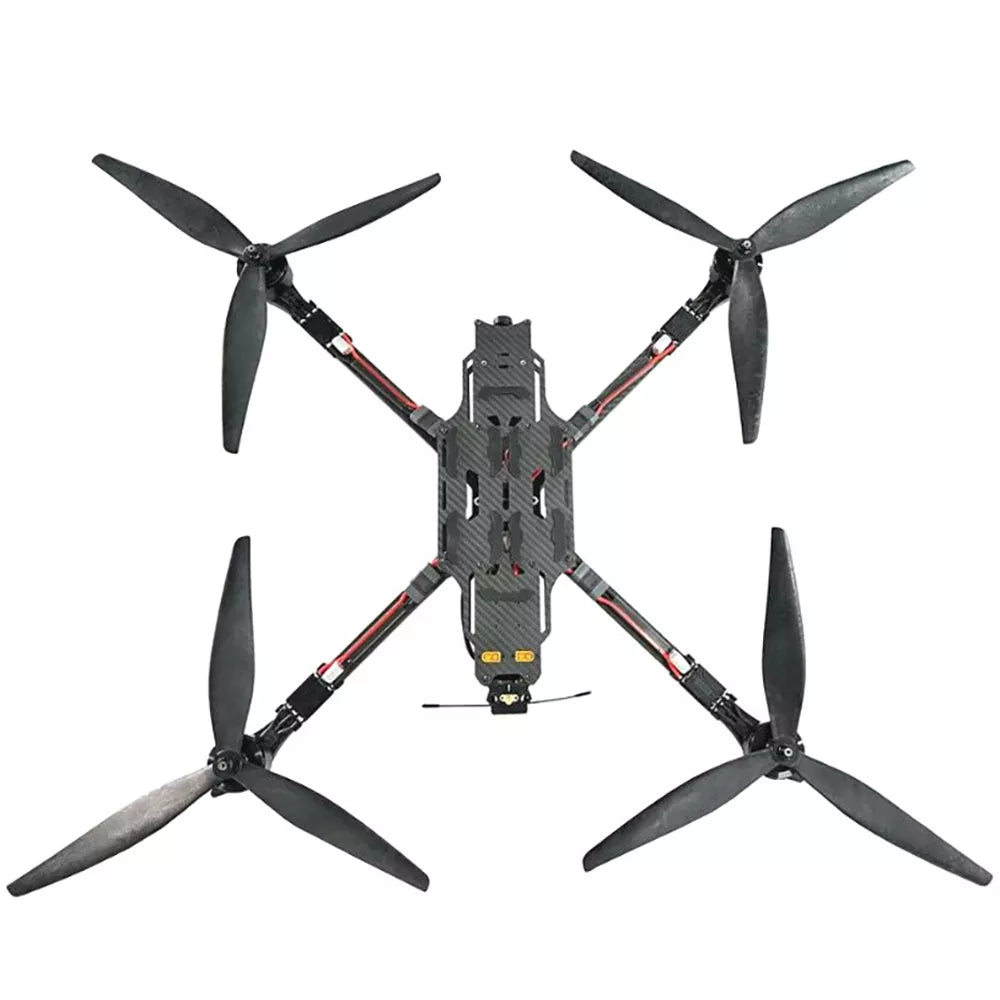

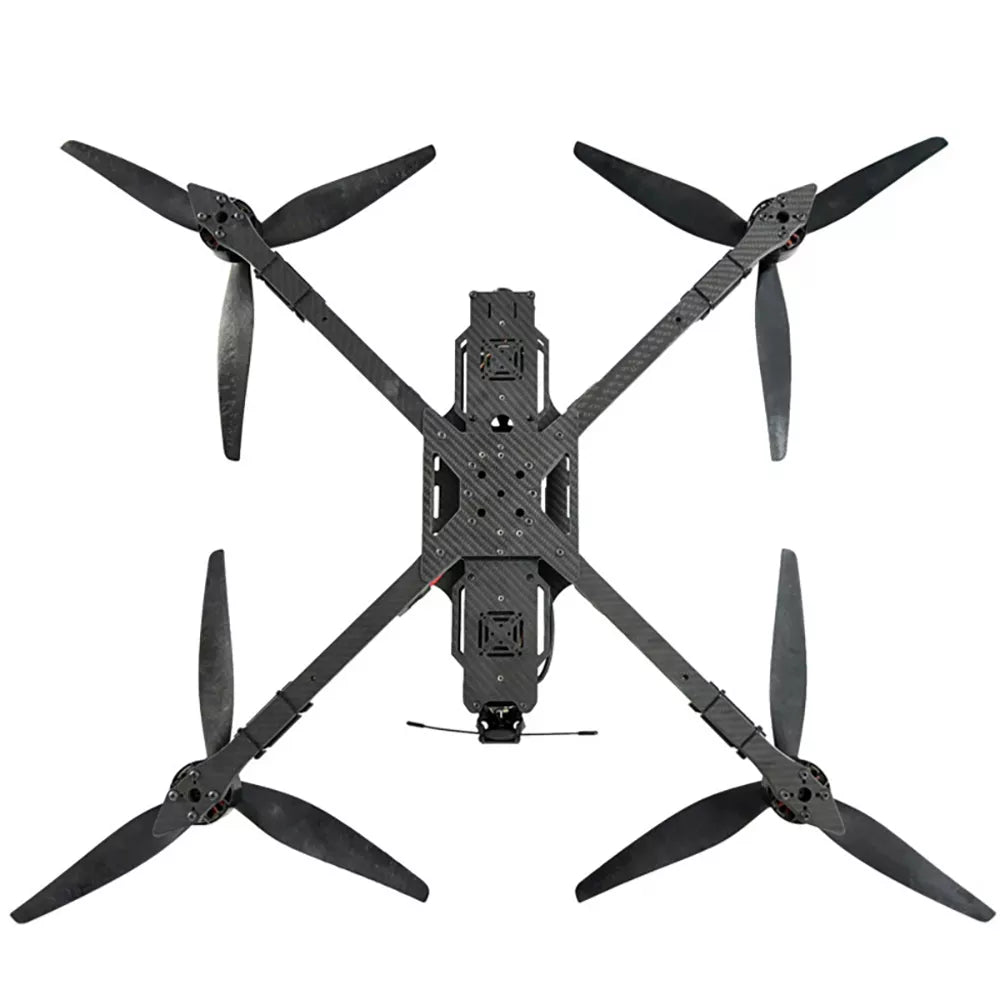

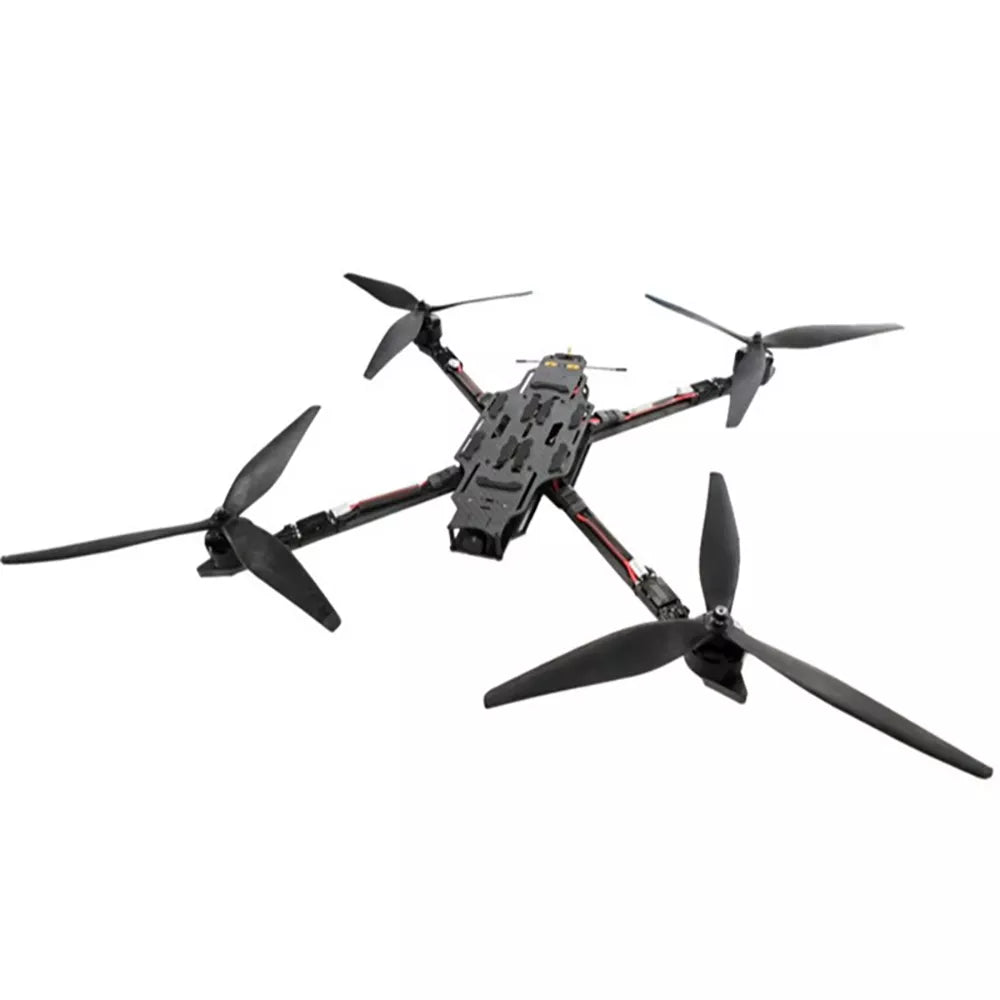

MANTA 15X Lite 15 inch FPV Drone 8KG Payload 20KM 5.8G 3W VTX ELRS RX Long Distance FPV Drone Kit
Product parameters:
Maximum speed: 130km/h
Rated Load: 7kg
Max Load: 8kg
VTX: 5.8G 48CH 3W
Farthest flight: 20km
Empty endurance: 42min, 2*8s8000mah, 4.9kg
Rated Load time: 12min, 2*8s8000mah, 11.8kg
Product size: 517*517*80mm
Wheelbase: 647mm
Arm Thickness: 10mm
Motor: 4*4214 380KV 8S
FPV Camera: 1800TVL 5-40V(Optional)
Antenna: 5.8G SMA L150mm
Receiver: ELRS915M
GPS: Optional M10
Propetler: 1507 3-blade (4Pcs)
Recommend Lipo Battery: 2*8s 8000mah 30C XT60 2.04kg

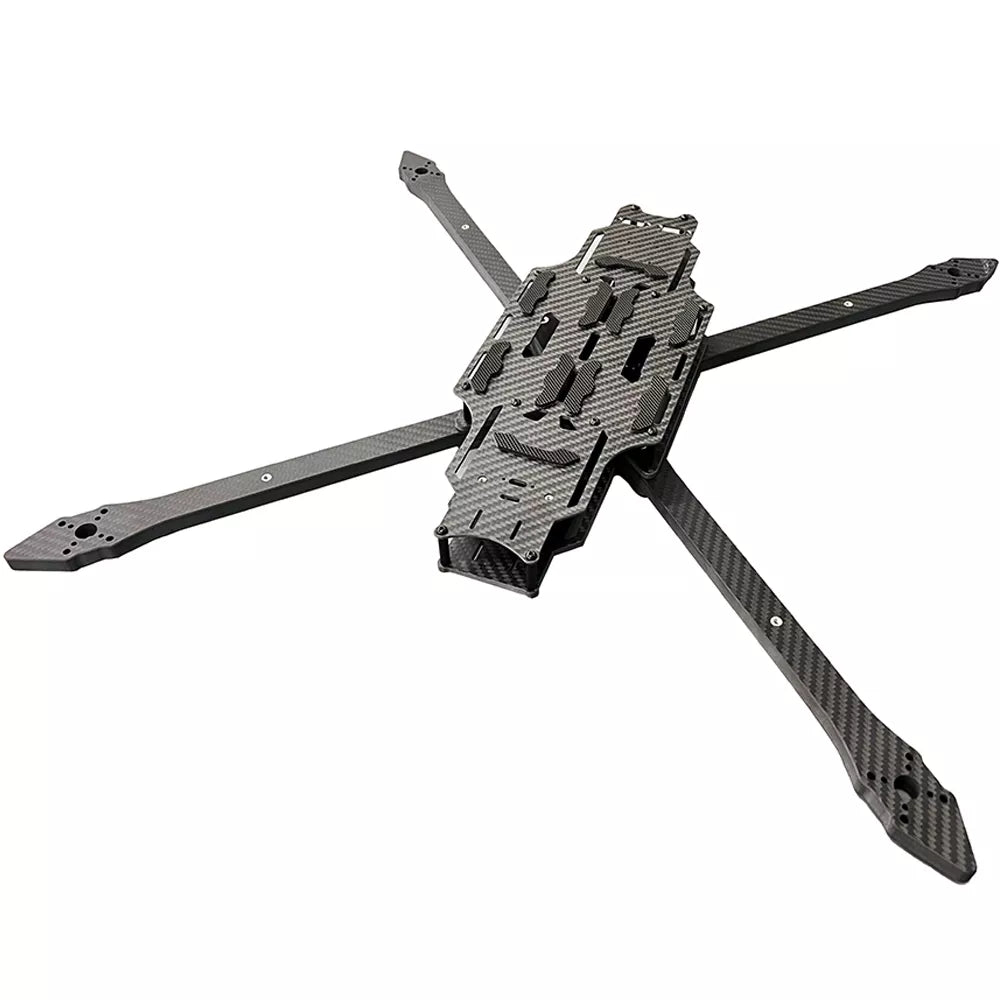

Frame: 15-inch Carbon
Structure: True X
Wheelbase: 700mm
Frame Dimension: L520*W520*H25 mm
Bottom Plate Thickness: 3mm
Top Plate Thickness: 3mm
Carbon Plate Material: T300/T700
Height of Electronic Device Layer: 20mm
Camera Spacing: 20mm
Stack Mounting Hole: M3*30.5mm
VTX Mounting Hole: M2*20/25.5mm M3*30.5mm
Propeller Installation Size: Max 13 inch
Motor Mounting Hole: M4*30mm

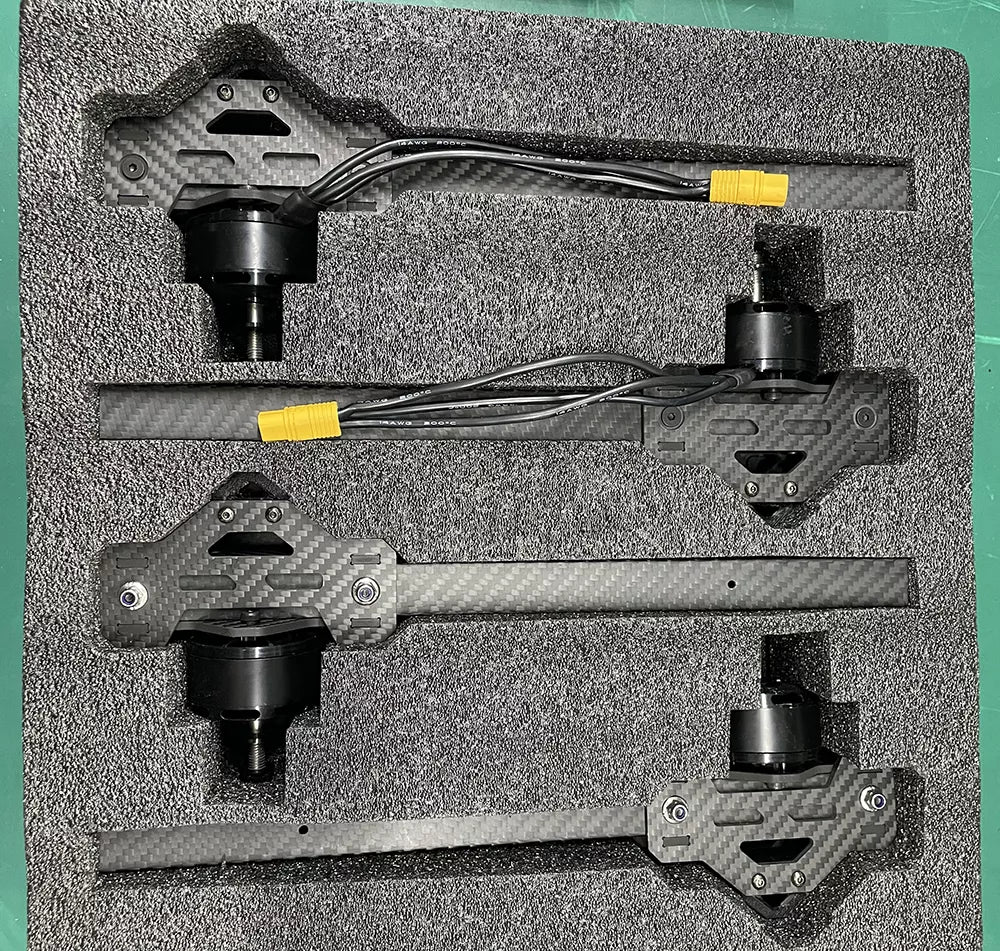

Motor: 4214 380 KV
KV Value: 380KV
Operating Rated Voltage: 6-8S
No-load Current: 2.8A/20V
Phase Resistance: 48mΩ
Motor Weight: 246g
Maximum Current: 60A
Maximum Power: 1760 W
Maximum Thrust: 4850g
Motor Size: Ф49x32.5mm
Flight Control: F722
MCU: STM32F722RET6
Gyroscope: ICM42688
Barometer: DPS310 or SPL06
Blackbox: 16 M
On-Screen Display: AT7456
BEC: 5V2A ,9V2A
Input Voltage: 12-50V(3-6S Lipo Recommended)
Firmware: Betaflight
Number of Serial Ports: 6 Groups
Supported Motors: M1 M8
Weight: 40.6x40.6x9.8mm
Size: 19.6g
Mounting Hole Spacing: 30.5mm/M3
ESC: 80A 8S
Firmware Name: QH 40_24_V0.19.2
Current Ratio Value: 200
Input Voltage: 8S
Continuous Current: 80A
Burst Current: 90A
ESC Telemetry: Not supported
BEC: Not supported
Size: 57*56*6mm
Mounting Hole Spacing: 30.5*30.5mm
Weight: 28g
Camera: B19 Product Manual Cam 1500TVL
Model: HD 1500TVL (upgraded version, with OSD tuning board)
Image Sensor: 1 / 3′CMOS
Pixels: 1500TVL
Lens: 2.1mm
Signal System: PAL / NTSC (adjustable via OSD)
Signal-to-Noise Ratio: ＞ 60Db（AGC OFF）
Electronic Shutter Speed: PAL: 1 / 50-100.000, NTSC: 1 / 60-100,000
Electronic Shutter: PAL: /50 - 100,000; NTSC: 1/60 - 100,000
Automatic Gain Control (AGC): Low / Medium / High
Backlight Compensation (BLC): Yes
Minimum Illumination: 0.001Lux / 1.2F
WDR: D-WDR
DNR: 3DNR
Day/Night: Auto/Color/B&W
Power Supply: DC 5V-30V
Image transmission VTX: 5.8G 40CH 3W
Supported Voltage: 7-28V
BEC: 5V / 500mA
Transmission Power: 25mW / 13.95dBm; 2500mW / 34.04dBm
Antenna Interface: MMCX
Output Power: PIT / 25 / 2500mW
Standard 40 Channels: A / B / E / F / R
Video Transmission Protocol: SmartAudio
Mounting Holes: 20X20.M2
Size: 25mmX37mmx6.5mm
Weight: 19g
Antenna: 5.8G RHCP 150MM
*The whole is made of imported PC+ABS material which can withstand high strength impact
*Impact resistant double-sheathed semi-rigid cable
*Root reinforcement design, 360 ° protection
RX: ELRS 915MHz
Processing Chip: ESP8285
RF Chip: SX1276IMLTRT
Power Input: 5V
Operating Current: 100mA
Operating Protocol: CSRF
Receiving Frequency Range: 915MHz or 868MHz
Size: 12mm12mm3mm
Weight: 0.6g (without antenna)
Antenna Connector: IPEX1
Telemetry Output Power: <17dBm
Firmware Update Method: WIFI
Propellers: HQProp 15*7*3
Type: MQ15X7X3-GRN
Blades: 3
Material: Fiberglass Nylon
Pitch: 7 inch
Center Hole lnner diameter: 6mm
Weight/g: 63.9g
Package weight: 3.2kg
Package size: 35.5*35.5*16cm
Note: Batteries and transmitters are not included in the package
