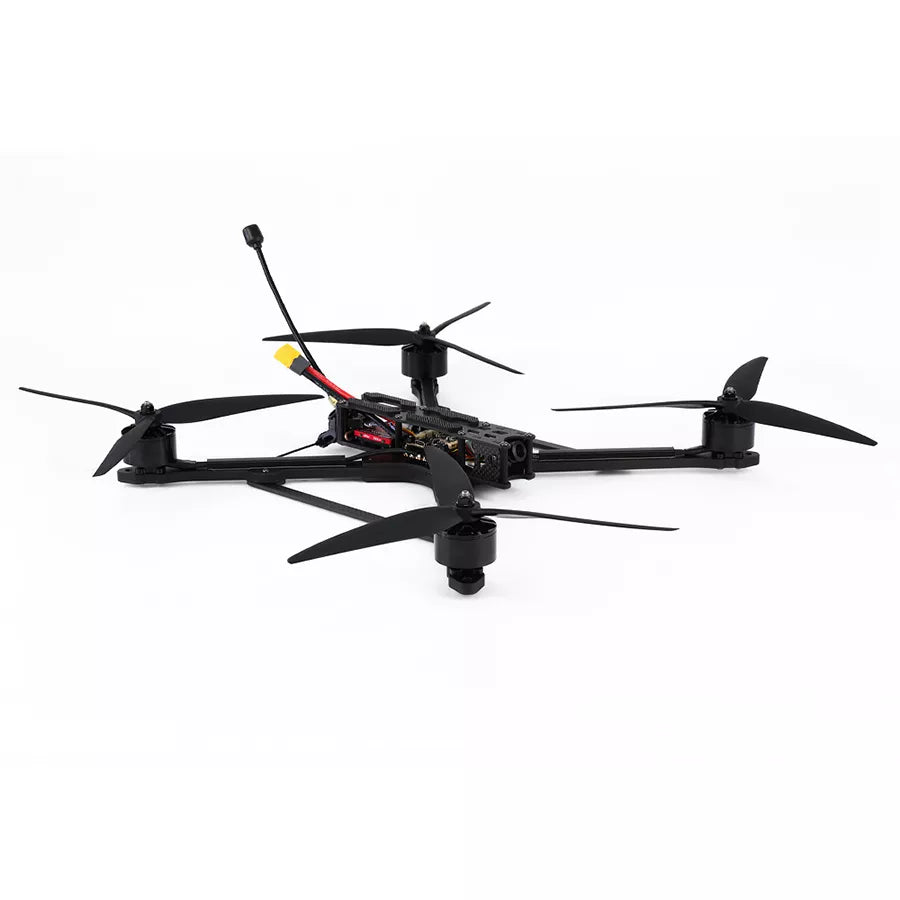

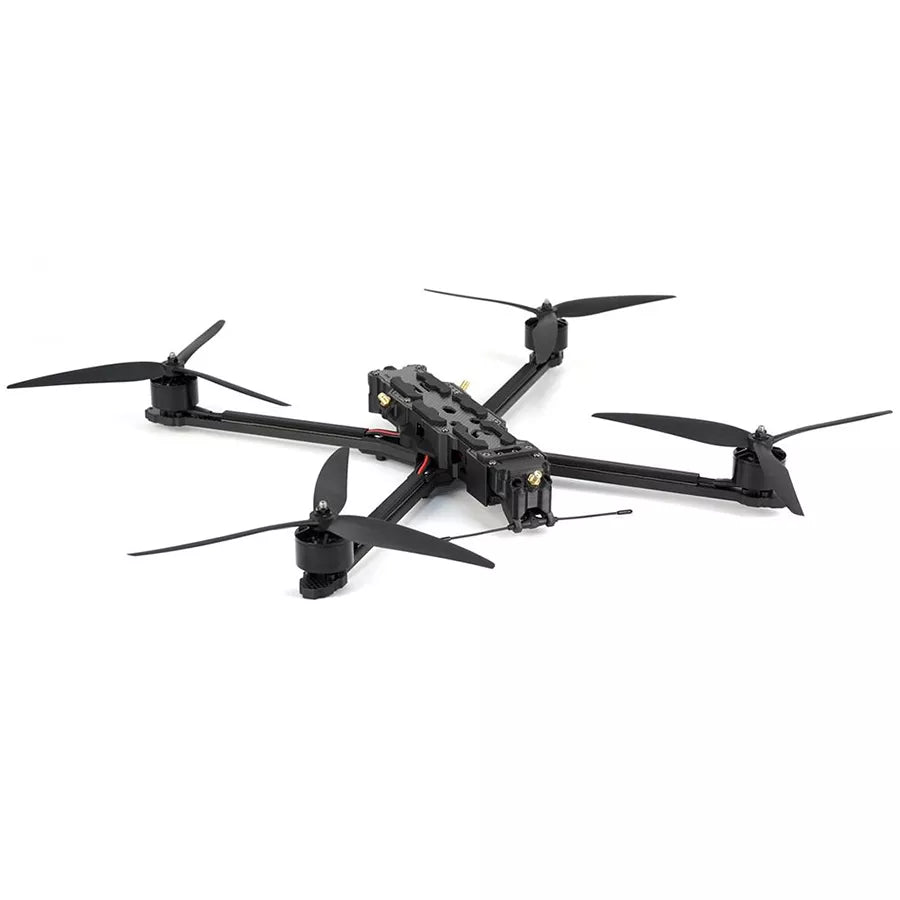

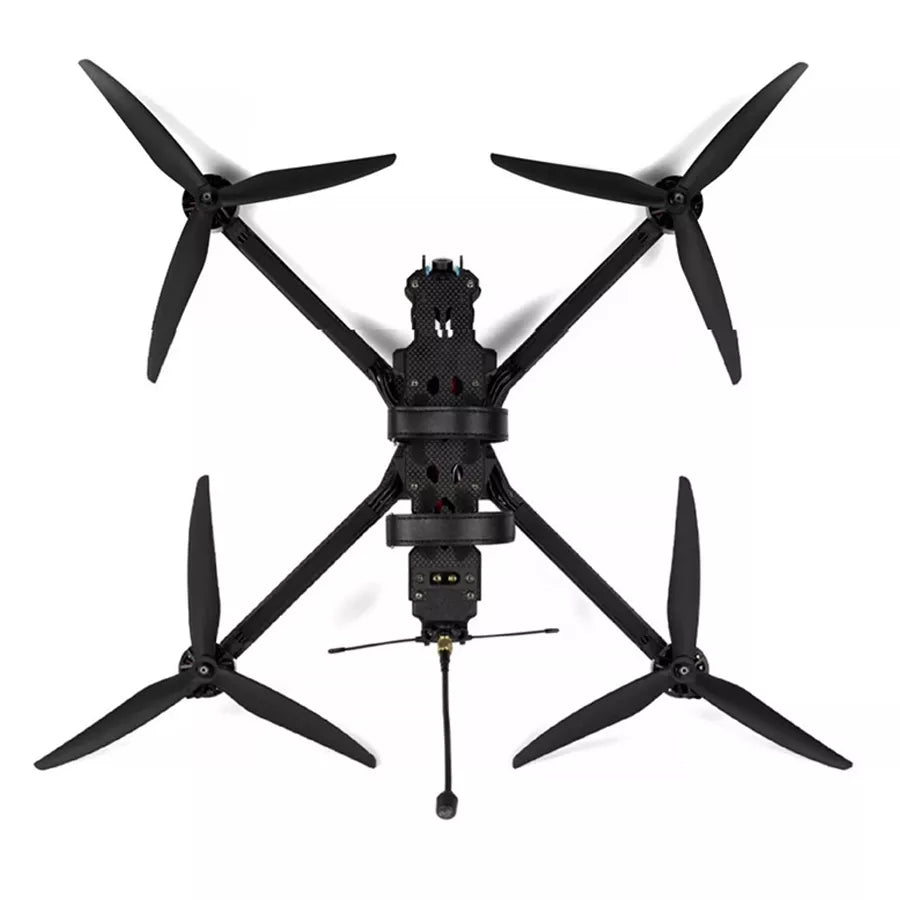

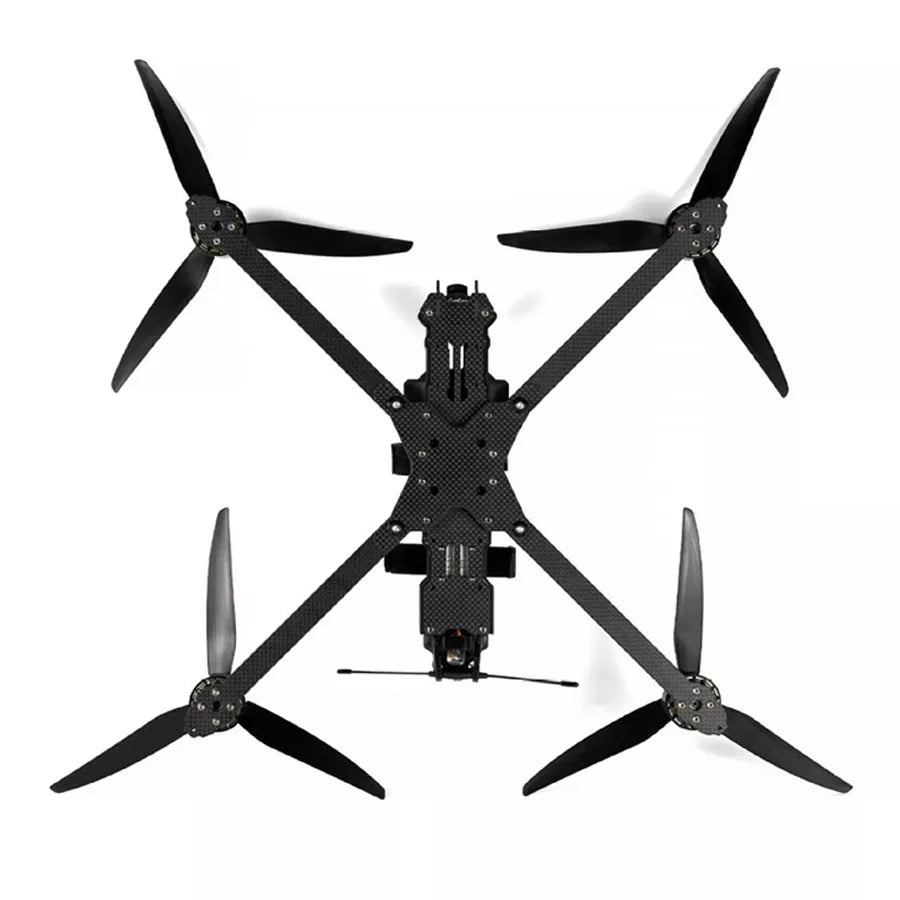

Manta 10 X Lite 10inch FPV Drone BNF Long Range Heavy Payload Cinematic Drone Analog 5.8G VTX FPV Drone Kits

Sale price$459.80

Color: Black
VTX: Analog 5.8G 1600mW
RX: TBS

Shipping

Free standard shipping all orders

Return

30 days Return and exchange policy

Manta 10 X Lite 10inch FPV Drone BNF Long Range Heavy Payload Cinematic Drone Analog 5.8G VTX FPV Drone Kits

Product parameters:
Product name: Manta 10"X Lite

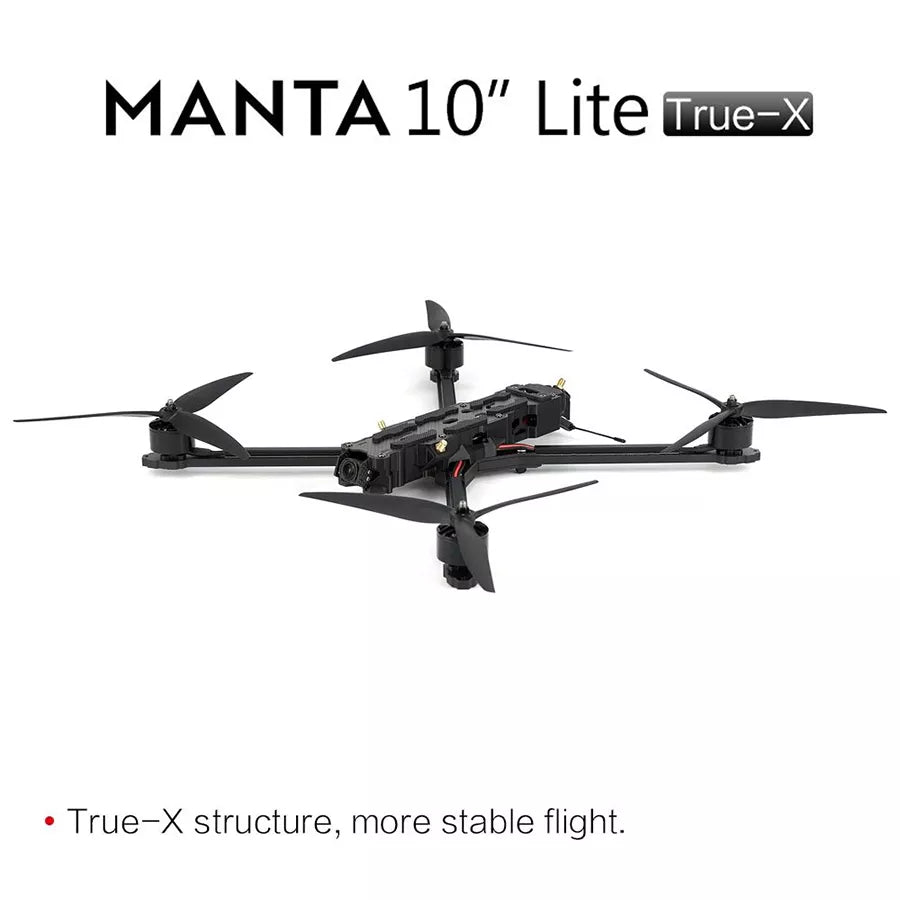

Structure: True X
Motor: AE3115 900KV
Flytower: Argus 65A+F722
Wheelbase: 440mm
Lower carbon plate: 3mm
Upper carbon plate: 2mm
Material: T700
Arm thickness: 7mm
Camera width: 20mm
Flytower hole spacing: M3*30.5mm
Image transmission hole spacing: M2*20/25.5.M3*30.5
Propeller size: Max 10.0 inch
Motor hole position: M3*16/19mm
Electrical layer height: 25mm
Payload: 2.5kg ~ 3kg
Flying Time: With Load Flying Time: 8-15min; No Load: 30min
Recommended battery: 8000mAh 6S
Flying Distance: 5-10km
Max Speed: 140km/h
Max Altitude: 6000m
Packaging: 1kg /  400*400*80mm

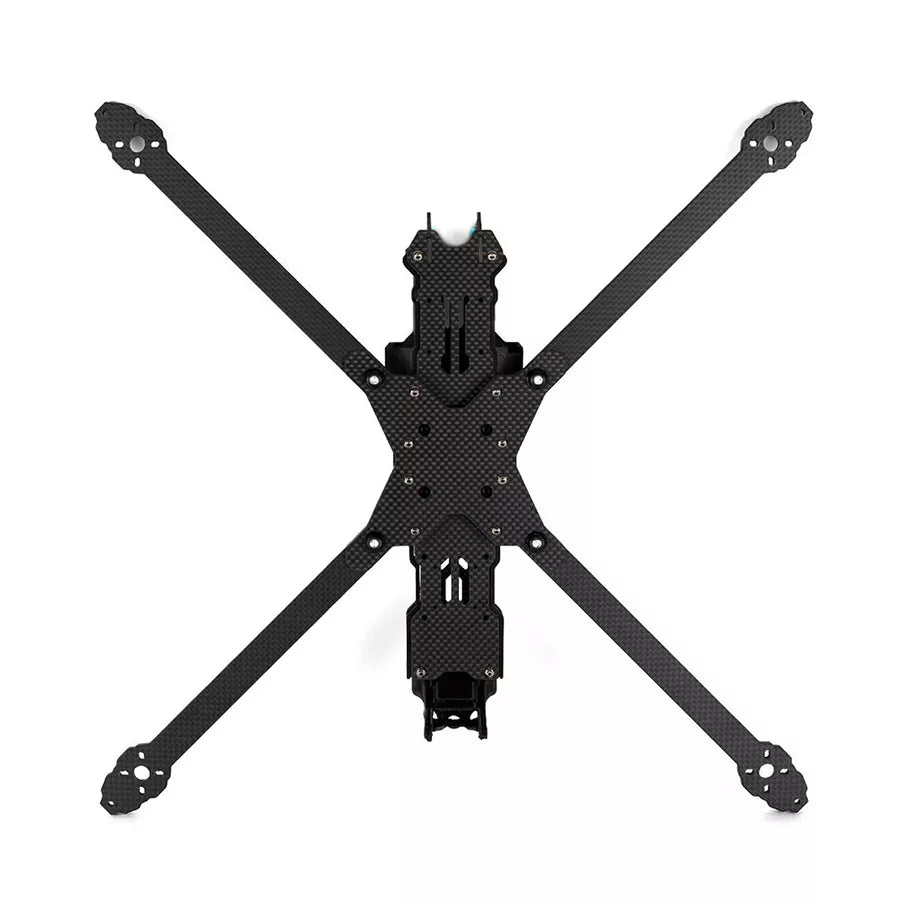

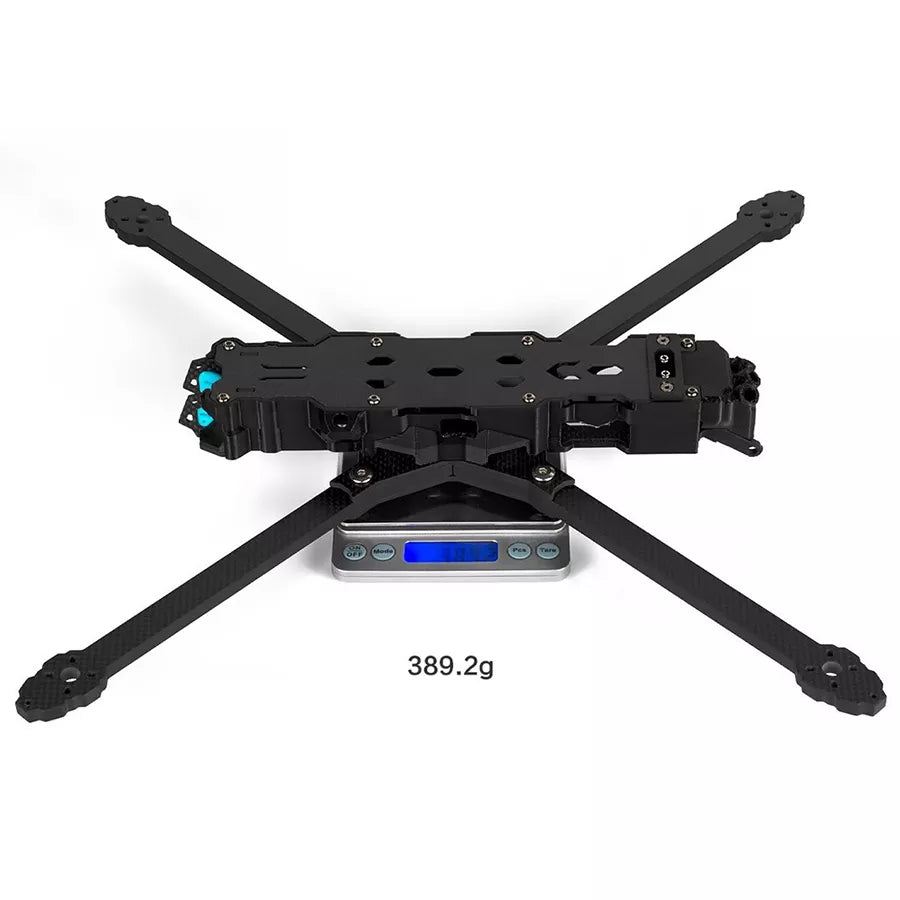

Frame: 10-inch Carbon
Structure: True X
Wheelbase: 440mm
Bottom Plate Thickness: 3mm
Top Plate Thickness: 2mm
Carbon Plate Material: T300/T700
Height of Electronic Device Layer: 25mm
Arm Thickness: 7mm
Camera Spacing: 20mm
Stack Mounting Hole: M3*30.5mm
VTX Mounting Hole: 1M2*20/25.5.M3*30.5mm
Propeller Installation Size: Max 10.0 inch
Motor Mounting Hole: 16mm16mm/19mm19mm
Top Plate Size: 21.6*5cm
Bottom Plate Size: 22.3*10.8cm

Motor: 3115  900KV
KV Value: 900KV
Operating Rated Voltage: 3-6S
No-load Current: 1.28A/ 12V
Phase Resistance: 38mΩ
Motor Weight: 112.3g
Maximum Current: 64.7A
Maximum Power: 1617 W
Maximum Thrust: 4185g
Motor Size: Ф37.1*32.1mm

Flight Control: F405
Size: 37×37mm
Mounting Holes: 30.5×30.5mm
9V: 9V regulated power supply output interface, max current 2A
5V:5V regulated power supply output interface, maximum current 3A
4.5V:Receiver power connector (USB power supply only)
CR: Current monitoring port
M1: camera reference pin (according to the flight control firmware version)
VI: Camera input port
VO: Graphic output interface
LED: RGB light strip interface
B-:Connect to the negative terminal of the buzzer, positive terminal connects to B+
RC: Receiver SmartPort interface
Rssi: Rssi signal input port

ESC: 60A-6S
Model: BLHeli_S 4IN160V1
Continuous Current: 60A
Burst Current: 70A (10s)
BEC: No
Current Sensor: Yes
Battery Cells: 2-6S
Weight: 21.5g
Size: 37*42.7mm
Mounting Hole Spacing: 30.5*30.5mm

Camera: B19 Product Manual Cam 1500TVL
Model: HD 1500TVL (upgraded version, with OSD tuning board)
Image Sensor: 1 / 3′CMOS
Pixels: 1500TVL
Lens: 2.1mm
Signal System: PAL / NTSC (adjustable via OSD)
Signal-to-Noise Ratio: >60Db(AGC OFF)
Electronic Shutter Speed: PAL: 1 / 50-100.000; NTSC: 1 / 60-100,000
Electronic Shutter: PAL: 1/50 - 100,000; NTSC: 1/60 - 100,000"
Automatic Gain Control (AGC: Low/Medium/High
Backlight Compensation (BLC): Yes
Minimum Illumination: 0.001Lux / 1.2F
WDR: D-WDR
DNR: 3DNR
Day/Night: Auto/Color/B&W
Power Supply: DC 5V-30V

Image transmission VTX: 5.8G 40CH 2.5W (Multiple options)
Supported Voltage: 7-28V
BEC: 5V / 500mA
Transmission Power: 25mW / 13.95dBm; 2500mW / 34.04dBm
Antenna Interface: MMCX
Output Power: PIT / 25 / 2500mW
Standard 40 Channels: A / B / E / F / R
Video Transmission Protocol: SmartAudio
Mounting Holes: 20X20.M2
Size: 25mmX37mmx6.5mm
Weight: 19g

Antenna: 5.8G RHCP 150MM
*The whole is made of imported PC+ABS material which can withstand high strength impact.
*Impact resistant double-sheathed semi-rigid cable.
*Root reinforcement design, 360 ° protection.

RX: ELRS 915MHz  (Multiple options)
Processing Chip: ESP8285
RF Chip: SX1276IMLTRT
Power Input: 5V
Operating Current: 100mA
Operating Protocol: CSRF
Receiving Frequency Range: 915MHz or 868MHz
Size: 12mm12mm3mm
Weight: 0.6g (without antenna)
Antenna Connector: IPEX1
Telemetry Output Power: <17dBm
Firmware Update Method: WIFI

Propellers: Gemfan Prop 1050
Type: 1050
Blades: 3
Material: Fiberglass Nylon
Pitch: 5in
Center Hole lnner diameter: 5mm
Weight/g: 17g

Be aware:
*O3 or LINK VTX of the drone has been activated for better testing.
*If activation is not required, please note when placing an order.

Recommended Configuration:
Camera: Caddx Ratel
Antenna: 5.8G RHCP
RX: TBS / ELRS 2.4G / No RX
VTX: Analog 5.8G (1.6w or 2.5w) / Analog 1.2G / Link HD / DJI O3
FC: Axisflying Argus ECO F405
ESC: Axisflying Argus 60A 8bit
MOTOR: Axisflying 3115 900kv
Props: GemFan 1050

Performance:
Payload:2.28 kg
Take off weight:3.8 kg

Note: Batteries and transmitters are not included in the package

**We are the source manufacturer, welcome to purchase in bulk!
