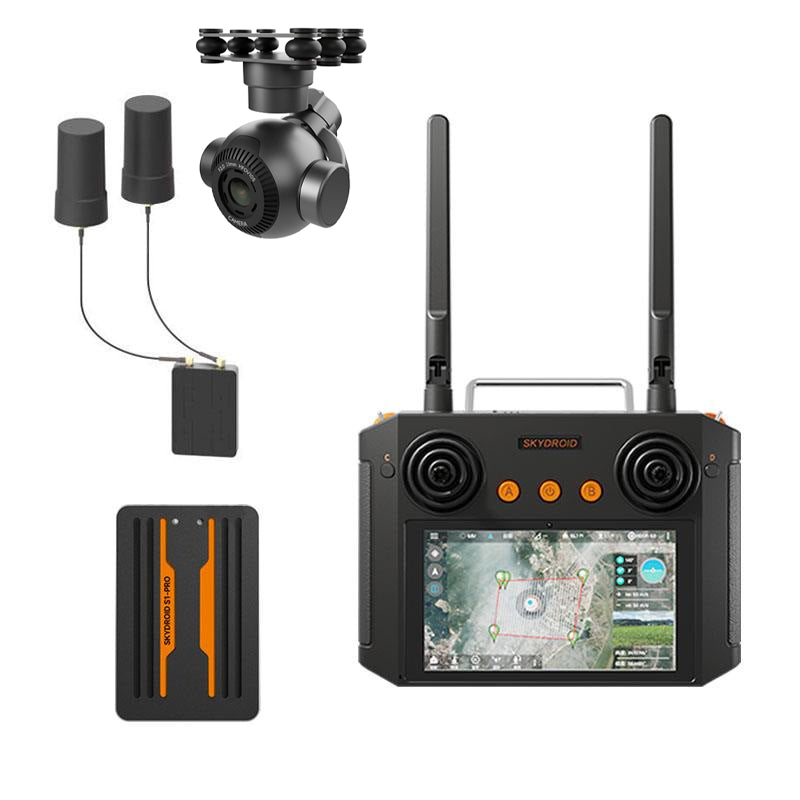

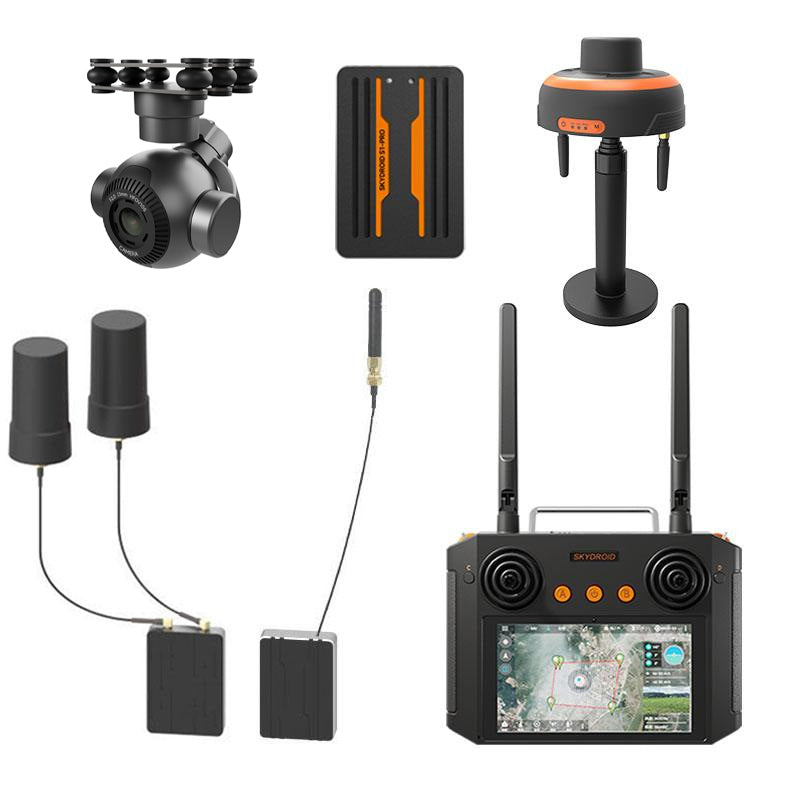

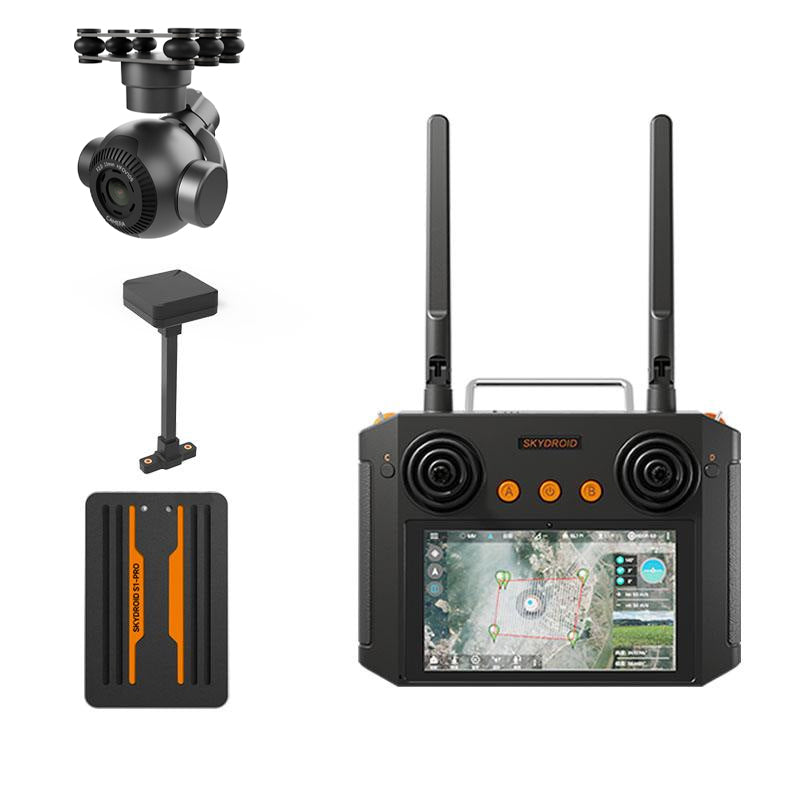

Skydroid S1 PRO Autonomous Control System with H12 Remote Controller 1080P Digital Video Transmission and RTK Navigation

Skydroid S1 PRO Autonomous Control System with H12 Remote Controller 1080P Digital Video Transmission and RTK Navigation

Skydroid H12 Ground Control Terminal：
The Skydroid H12 is a handheld control terminal developed for unmanned aircraft, robotic platforms and long-range remote operation systems. By combining flight control, telemetry monitoring, video reception and Android-based software support into a single device, the H12 reduces the number of external components normally required during deployment.

Unlike traditional RC transmitters that focus primarily on aircraft control, the H12 functions as part of the complete communication chain between the operator and the vehicle. Flight status, GPS information, telemetry data and live video can be monitored directly from the integrated display without the need for additional receivers or external monitors.

The platform is widely used on multirotor drones, fixed-wing aircraft, VTOL platforms, unmanned ground vehicles and customized robotic systems. System integrators often select the H12 when a project requires both command transmission and real-time operational feedback through a unified interface.

Built around an Android operating environment, the controller supports mission planning software, ground station applications and industry-specific programs. This allows operators to adapt the system to different workflows, whether the objective is aerial inspection, mapping, agricultural operations or infrastructure monitoring.

Communication and Control：
The H12 combines remote control transmission, telemetry communication and video reception into a single handheld unit. This architecture simplifies field deployment and reduces dependence on multiple standalone devices.

Typical functions include:
* Aircraft control and command transmission
* Telemetry monitoring
* Real-time video reception
* Camera and gimbal control
* Waypoint mission management
* Payload operation and monitoring

Integration Applications：
Surveying and Mapping：
Used on mapping platforms where operators need continuous access to flight information and mission progress throughout data collection.

Infrastructure Inspection：
Suitable for inspection aircraft operating around power lines, solar farms, industrial facilities and transportation networks.

Agricultural Operations：
Supports crop spraying and agricultural UAV systems where route management and payload monitoring are required during flight.

Security and Observation：
Can be integrated into surveillance and monitoring platforms that require reliable communication and live visual feedback.

Research and Development：
Frequently deployed on prototype UAV projects and custom-built systems based on open flight-control ecosystems.

System Architecture：
The H12 is designed as an operator-side communication terminal rather than a standalone radio transmitter. It serves as the central interface between the vehicle, onboard payloads and mission management software.

This approach provides a streamlined workflow for professional users who need access to aircraft status, video feeds and operational data from a single control device.

Key Specifications：
Channels: 12 Channels
Operating System: Android Platform
Display: Integrated HD Touchscreen
Communication: Control, Telemetry and Video Transmission
Applications: UAV, UGV, VTOL and Robotic Platforms
Compatibility: ArduPilot, PX4 and Custom Systems
Control Functions: Camera, Gimbal and Payload Management
Deployment Type: Portable Ground Control Terminal

Configuration Options：

1. S1 PRO FC Only:
Includes:
* S1 PRO Electronic Control System
* Built-in R12 PRO Receiver
* 1080P Digital Video Transmission Module
* GPS Module
* Wiring Accessories
Suitable for UAV, UGV and USV platform integration.

2. S1 PRO + H12 Pro
Includes:
* S1 PRO Electronic Control System
* H12 PRO Remote Controller
* Built-in R12 PRO Receiver
* GPS Module
* Video Transmission System
* Antenna Set
Recommended for users who already have a camera or gimbal system.

3. S1 PRO + H12 Pro + 3in1 Camera
Includes:
* S1 PRO Electronic Control System
* H12 PRO Remote Controller
* 1080P Digital Video Transmission
* 3-in-1 FPV Camera
* Night Vision Fill Light
* GPS Module
Suitable for FPV vehicles, unmanned boats and robotic platforms.

4. S1 PRO + H12 Pro + C10 Pro Camera
Includes:
* S1 PRO Electronic Control System
* H12 PRO Remote Controller
* C10 PRO 3-Axis Stabilized Gimbal
* 2K HD Camera
* Digital Video Transmission System
* GPS Module
Designed for aerial inspection, surveillance and observation tasks.

5. S1 PRO + H12 Pro + RTK Module
Includes:
* S1 PRO Electronic Control System
* H12 PRO Remote Controller
* RTK Positioning Module
* GPS Module
* Digital Video Transmission System
Provides centimeter-level positioning for autonomous navigation applications.

6. S1 PRO + H12 Pro + RTK Module + 3in1 Camera
Includes:
* S1 PRO Electronic Control System
* H12 PRO Remote Controller
* RTK Positioning Module
* 3-in-1 FPV Camera
* Video Transmission System
Suitable for long-range FPV and unmanned vehicle applications.

7. S1 PRO + H12 Pro + RTK Module + C10 Pro Camera
Includes:
* S1 PRO Electronic Control System
* H12 PRO Remote Controller
* RTK Positioning System
* C10 3-Axis Gimbal Camera
* Digital Video Link
Recommended for professional inspection and monitoring missions.

8. S1 PRO + H12 Pro + RTK + 915MHz RX + Base Station
Includes：
* S1 PRO Electronic Control System
* H12 PRO Remote Controller
* RTK Module
* 915MHz Receiver
* RTK Base Station
Suitable for high-precision navigation and autonomous operations.

9. S1 PRO + H12 Pro + RTK + 915MHz RX + Base Station + 3in1 Camera
Includes:
* S1 PRO Electronic Control System
* H12 Remote Controller
* RTK Positioning Module
* 915MHz Receiver
* RTK Base Station
* 3-in-1 FPV Camera
Complete solution for UAV, UGV and USV deployment.

10. S1 PRO + H12 Pro + RTK + 915MHz RX + Base Station + C10 Pro Camera
Includes:
* S1 PRO Electronic Control System
* H12 Remote Controller
* RTK Positioning Module
* 915MHz Receiver
* RTK Base Station
* C10 3-Axis Gimbal Camera
Complete solution for UAV, UGV and USV deployment.
